Piecal 520B Single Type Thermocouple Calibrator, Source only; also mV
(You save $16.00 )

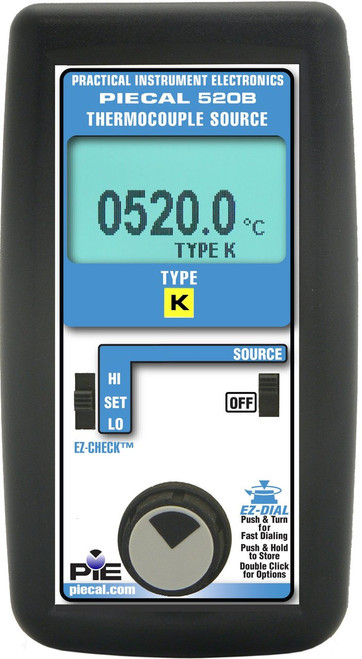

Piecal 520B Single Type Thermocouple Calibrator, Source only; also mV Single TC Type Source only T/C & mV. Includes mV leads and FREE NIST Traceable Certificate of Calibration. (Optional boot 020-0213 and hands free carrying case 020-0211) Order codes: 520B-J; 520B-T; 520B-E; 520B-K; 520B-B; 520B-R; 520B-S520B-N; 520B-G; 520B-C; 520B-D; 520B-L; 520B-U and 520B-P Single T/C Simulator The PIE 520B Thermocouple Simulator simulates a dedicated standard thermocouple curve over the entire industrial temperature range. The PIE 520B provides precise temperatures for inputs to all types of instruments such as transmitters, recorders, controllers, alarms, data acquisition, and computer systems. PIE 520B is cold-junction compensated for changes in ambient temperature. The PIE 520B offers the highest performance and functions in its class by exceeding the accuracy and functions of many higher priced thermocouple calibrators. The low cost PIE Model 520B is an easy as PIE to use thermocouple source for checkout and calibration of all thermocouple instruments in the field, shop or control room. Accuracy ±(0.015% of mV Setting + 0.009mV) Calibrate in temperature for your T/C type Adjustable temperature output in selectable 0.1°C or 0.1°F steps Select from Types J, K, E, T, R, S, B, N, G, C, D, L, U and P Typical accuracy of ±0.35°C (0.5°) for Type K EZ-Dial¢ knob easily adjust output by °C or °F with 0.1° resolution Three position EZ-Check¢ switch for 0% and 100% span adjustments Uses standard AA Alkaline Batteries Superior battery life of 45 hours under typical continuous usage Easy access to battery compartment Lightweight and Rugged with a Solid Feel Small and tough Protected to 60V Optional Rubber Boot, T/C Wire with miniature connector and Carrying case available NIST Traceable Calibration Certificate included FREE Additional information Weight 2 lbs Dimensions 6.75 Ã 4.25 Ã 3.5 in Thermocouple Type J, K, T, E, R, S, B, N, G, C, D, L, U, P Advantages of the PIE 520B over the Altek 22 thermocouple calibrator Continuously select output temperaturesWorks will all instrument ranges across the full range in degrees C & F. Not limited to 22 temperature steps! Works with types J, K, E, T, R, S, B, N, G, C, D, L, U, or POne source replaces ALL the ranges for any single T/C type of the Altek 22 Instantly select output three temperaturesFlip the EZ-Check¢ switch to calibrate zero, span and mid-point LCD display with backlightEasy viewing in dark locations More resistant to accidental damageReconfigure without resetting calibrator Includes Certificate of CalibrationAll PIE Calibrators come with a free signed and dated certificate. Altek calibrators come only with an unsigned Statement of Calibration Practices with a certificate of calibration available for an extra charge.
