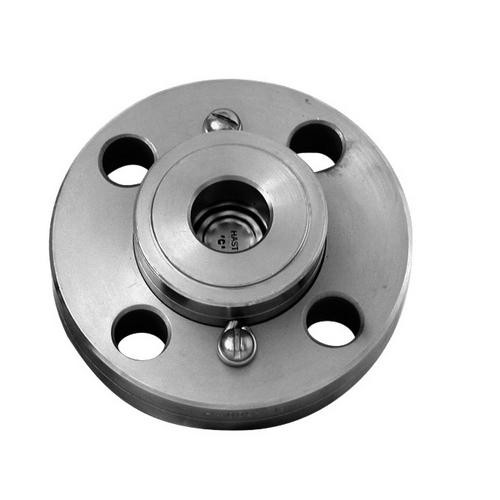

Winters 1/4" CS 1.5" 300# MONEL LOWER HAST C DIA D4415300HM25CS
(No reviews yet)
Write a Review
Write a Review
U.S. Winter instruments
Winters 1/4" CS 1.5" 300# MONEL LOWER HAST C DIA D4415300HM25CS
$1,187.95
- Brand
- U.S. Winter instruments
- SKU:
- D4415300HM25CS
- UPC:
- 6.28311E+11
Winters, D4415300HM25CS, D44 #300 1.5x1/4" NPTF, Monel Lower Housing, Carbon Steel Welded Flanged
Features:
- "Continuous use" seals-backing plate will prevent diaphragm from rupturing if pressure sensing instrument fails. Pressure will be held until instrument is replaced
- Various sizes and housing materials available
- ASME B40.100 compliant
- 1 year warranty
Applications:
- Used in industrial applications such as oil refineries, pulp and paper mills and chemical plants
| Material | Carbon Steel |
| Diaphragm Material | Hastelloy? C |
| Housing | Monel? |
| Construction | Two piece construction |
| Connection | 1/4" NPTF |
| Maximum Temperature Limit | 450?F (232?C) Teflon?Lined: 400?F (204?C) (higher temperature limits available) |
| Other | Cleanout type for easy cleaning and calibrating. Saddle diaphragm seals available upon request. Flushing connections available |
