Description

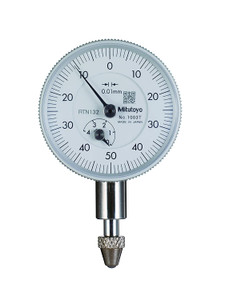

Standard Type, 10 mm Range, 0,01 mm GraduationThis is a standard dial indicator. It offers you the following benefits:
- Bezel clamp and lifting lever (optional) can be attached to either right or left side. They can be easily installed and removed without tools.
- No through screw holes on the frame as well as the use of an O-ring prevents water or oil penetration.
Features
Digital/Analog: | Analog
|
Inch-Metric: | Metric
|
Functions: | ISO type
|
Range: | 10 mm
|
Range per rev.: |
1 mm
|
Graduation: | 0.01 mm
|
Graduation: | 0.01
|
Scale: | 100-0
|
Measuring force: | 0,4-1,4
|
MPE any 1/10 revolution: |
5 ?m
|
MPE any 1/2 revolution: |
9 ?m
|
MPE any 1 revolution: |
10 ?m
|
MPE measuring range: | 13 ?m
|
H MPE (Hysteresis): | 3 ?m
|
R MPE (Repeatability): | 3 ?m
|
Stem: | 8 mm
|
Contact point: | Carbide tipped, thread: M 2.5 x 0.45 mm
|
Continuous dial: | Yes
|
Reverse reading: | Yes 3
|
fu: | 3 ?m
|
Mass: | 135 g
|
