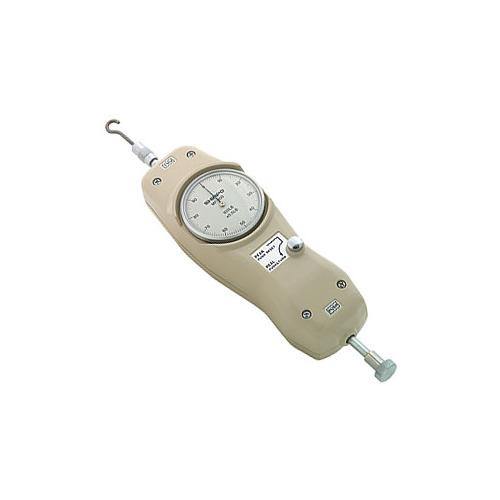

Shimpo MF-2 2 lb Capacity Mechanical Force Gauge MF-2

Description

MF Series 2 lb Capacity Mechanical Force Gauge

MF Series Mechanical Force Gauge with Peak Force Analysis

Includes:

• Force Gauge
• Protective carrying case
• Attachment adapters (flat head, hook, chisel, notched head, cone head, extension rod, large hook and large V-hook)

Incredibly durable and user-friendly, the economical MF mechanical force gauge is excellent for push/pull force testing in manufacturing, material testing, maintenance and inspection applications. The peak force mode features an easy push-button reset; this is especially helpful for doing repetitive testing in an assembly line or in quality control. The large dial indicator allows viewing of force changes as they occur. This large dial reduces the chance for parallax errors when taking readings. The MF was ergonomically designed for handheld use, but may also be used with the optional handle-great for loads over 15 pounds (6.8 kg). Due to its mechanical design, response time is immediate. Calibration is achieved by a set of precisely matched springs which are overload protected to 165 pounds (75 kg)! MF gauges feature a die-cast aluminum housing which mounts easily to all Shimpo Instruments test stands for even greater control of repetitive testing.

Features:

• Outstanding ±0.2% F.S. accuracy makes the MF’s Ideal even for the strictest applications
• Precision gauge movement provides a quick response for instantaneous analysis
• Measures Tension and Compression Forces – Only one gauge required for insertion withdrawal tests
• Real Time Mode or Peak Mode enables flexibility to view live readings or maximum values recorded
• Smooth mechanical operation with precise action produces repetitive, proper readings
• Exceptionally rugged die-cast aluminum housing enables usage in harshest conditions
• Overload protected to 165 pounds (74.84 kg) protects gauge from accidental damage
• Peak Mode Reset is an ideal for repetitive peak testing applications
• Compact, ergonomic design is perfect for handheld use
• Rear threaded inserts makes it easy to mount to test stands
