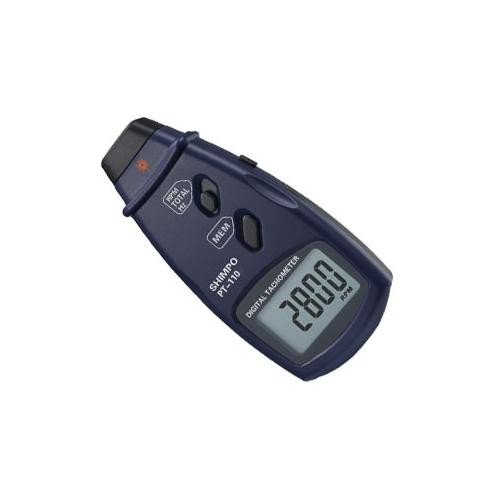

Shimpo PT-110 LCD Display, Laser Non-Contact Tachometer

(No reviews yet) Write a Review

$115.00

Brand: Shimpo Instruments
SKU:: PT-110
UPC:

Current Stock:

Quantity:

Adding to cart… The item has been added

Description
0 Reviews

Description

Non-Contact Laser Tachometer

Includes:

3 AAA batteries
Reflective tape
Carrying case

Features:

Measures RPM, Hz or Total by simple adjusting selector switch
Lightweight, ergonomic design allows comfortable long term usage
Large, backlit LCD for easy viewing in both bright and dim environments
Automatically records Maximum, Minimum, Last Value as well as up to 96 data points during testing quickly review after testing by pushing the MEM button
Laser operation shows point of measurement for easy aiming on equipment

PT-110 is a simple model to use, ergonomic, rugged test instrument that operates with optical laser technology. This velocity analyzing and measuring device is ideal for rotational machine inspection and process speed analysis. The PT-110 possesses a large backlit LCD screen that provides clear viewing in any environment. Users can obtain results in either Hertz or RPM, as well as Total counts with the simple selection switch. During testing, the unit automatically saves maximum, minimum, last recorded values and up to 96 logged data readings.

Specification

Range	2.5~99999 RPM; 0.05 ~ 1666 Hz; 1 ~ 99999 Count
Display	5 digit, 0.7" (18 mm) LCD
Resolution	0.1 RPM (2.5 ~ 999.9 RPM)
	1 RPM (above 1000 RPM)
	0.01 Hz (0.05 ~ 99.99 Hz)
	0.1 Hz (above 100 Hz)
Accuracy	+/-0.05% of Reading +/-1 LSD
Sampling Time	0.8 second (over 60 RPM)
Detection	Laser
Measuring Distance	2-20" (50-500 mm)
Memory	Automatically stores Maximum (UP), Minimum (dn), last value (LA) and up to 96 readings for review.Maximum speed for reading storage is every 0.8 seconds
Power	3 x 1.5V AAA battery
Enclosure	ABS plastic housing
Dimensions	6.1" x 2.8" x 1.4" (155 x 70 x 35 mm)
Product Weight	0.4 lb (181 g)
Package Weight	0.9 lb (408 g)
Certifications	CE
Warranty	1-Year
