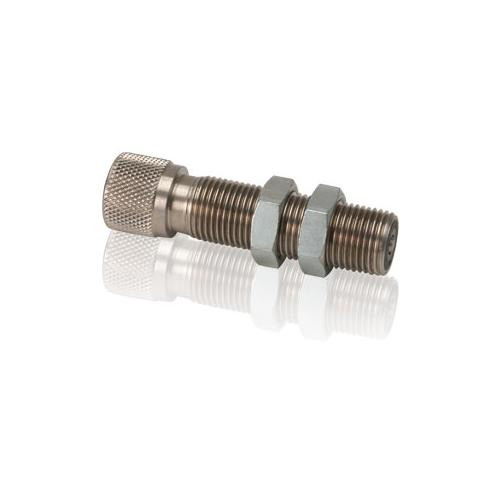

Shimpo MP-10 MP-10 Magnetic Sensor
(No reviews yet)
Write a Review
Write a Review
Shimpo Instruments
Shimpo MP-10 MP-10 Magnetic Sensor
$166.50
- Brand
- Shimpo Instruments
- SKU:
- MP-10
- Availability:
- In Stock
Description
Magnetic Pick-Up Sensor
MP-10 Magnetic Pick-Up Sensor provides a sine wave output whenever there is an abrupt change from non-magnetic to magnetic material moving past the sensor pole. The output voltage is directly proportional to the change in magnetic flux intensity over the change in time.
Features:
- Sine wave output from change in magnetic to non-magnetic
- Change in voltage proportional to magnetic flux intensity over time
- Range of 0.01? (0.25 mm) typical clearance
- 10? (3 m) cable
Specification
| Model | MP-10 magnetic pick-up sensor |
| Mounting | 5/8" thread hole |
| Adjustment | Typical clearance of 0.1" between sensor and gear |
| Temperature | -40° F to 221° F |
| Connections: Lead wire | Shield |
| White | |
| Black | |
| Tachometer: Terminal | E |
| SIG | |
| OV |
