Description

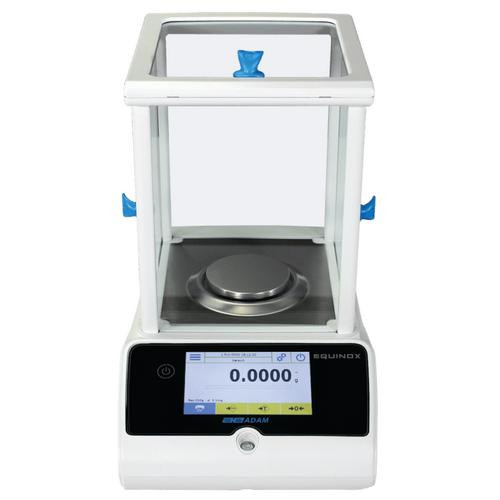

Adam Equipment, EAB 224e, Equinox Analytical and Semi-Micro Balance with External Calibration
Equinox analytical balances deliver remarkable precision to labs that perform highly detailed testing. The Equinox is ideal for research and quality assurance facilities; science education; precision counting; and production and manufacturing applications needing exceptionally precise results. A colour touch screen display provides intuitive operation, with icon-driven menus and readily accessible applications and functions. The five-inch screen is generously sized, offering 800 X 480 pixel resolution for excellent visibility.
Features:
- Backlit display
- Date
- External calibration
- GLP/ISO Print Reports
- Multiple weighing units
- RS-232
- Security lock down
- Tare Function
- Time
- USB
Hardware:
- Level indicator and adjustable feet ensure proper balance setup for optimum weighing results
- Security slot for optional Kensington-type lock and cable to help prevent theft
- Large, grade 304 stainless steel pan allows easy cleaning
- RS-232 interface is available to provide speedy connection to computers and printers
- USB host for memory card
Software:
- Built-in memory for storing products and settings
- External calibration allows for verification and adjustment with weights
- Selectable digital filtering helps minimise effects of vibration and disturbances
- Security password control prevents unauthorised access
- Printouts include date and time for data tracking within Good Laboratory Practices (GLP) guidelines
- Preset tare function speeds the process of repetitive weighing
- Parts counting with freely selectable sample sizes
- Multilingual display allows use in many different countries
- Memory accumulation totals results
- Checkweighing with audible alarm
Display:
- Large, responsive 5 800x480 pixel touch-screen display
Power:
- AC adapter included
Specification
Capacity | 220g |
Repeatability | 0.0002g |
Calibration | External calibration |
Pan Size | 80mm |
Power Supply | 24V 50/60Hz 500mA adapter |
Interface | RS-232, USB |
Net Weight | 6.9kg |
Approvals | N/A |
Readability | 0.0001g |
Weighing Units | g, mg, ct, GN, lb, oz, dwt, mm, ozt, tl.H, tl.S, tl.T, T, custom unit |
Stabilization Time | 4.0 |
Linearity | 0.0003g |
Construction | ABS plastic |
Operating Temperature | 10° to 30°C |
Overall Dimensions | 224x374x338mm (wxdxh) |
Display Digit Height | 125mm |
