Description
This item meets all government standards and requirements as set by the National Institute of Standards and Technology for scales and other weighing equipment.

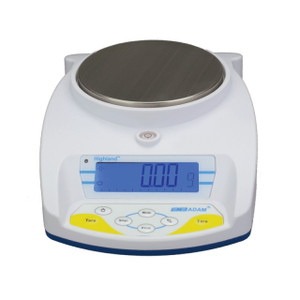

Adam Equipment Co Ltd., HCB 602aM, Highland 600g Portable Precision Balance with NTEP Certificate
Highland approved portable precision balances are packed with features and meet Class II requirements for use in retail applications. Readings are provided in carats, grams, or kilograms. The Highland includes RS-232 and USB interfaces, rechargeable battery and AC operation, capacity tracker, adjustable feet and level, lockdown capability and more. An innovative design allows the Highland to be stacked, minimising required storage space for multiple balances, and a removable draft shield counters the effects of wind disturbancHighland 5000g Approved Portable Precision Balanceses outdoors or in drafty environments. ShockProtect® helps prevent overloads to maintain smooth, uncompromised performance. With built-in applications for parts counting, percentage weighing and totalization / accumulation, the NTEP-approved Highland is an outstanding value for legal-for-trade applications.
Approval
- EC type and OIML approved
Hardware
- Balances stack efficiently and safely to save space (120mm pan size only)
- Color-coded keys facilitate quick recognition of the most frequently used buttons
- Dual tare keys operate with either the left or right hand
- Level indicator and adjustable feet ensure proper balance setup for optimum weighing results
- Security slot for optional Kensington-type lock and cable to help prevent theft
- Large, grade 304 stainless steel pan allows swift cleaning
- Solid ABS housing is durable for industrial use
- Three-point ShockProtect feature helps prevent overload damage to internal components
- Hook included for weighing below the balance
- USB and RS-232 interfaces provide speedy communication with computers and printers
Software
- Audible overload alarm warns when capacity is exceeded
- Selectable digital filtering helps minimize effects of vibration and disturbances
- Parts counting with preset sample sizes
- Memory accumulation totals results
- Zero-tracking feature ensures display returns to zero reading
Display
- Vivid, backlit LCD easily visible in any lighting conditions
- Programmable backlight can be set to "always on," "always off" or "light only when weighing"
- Capacity tracker built into display for easily monitoring possible overloads
Power
- AC adapter included
- Rechargeable battery included for operation almost anywhere
- Programmable auto power-off to save energy
Applications
- Accumulation
- Parts counting
- Percentage weighing
- Weighing
Specification
| Capacity | 600g |
| Repeatability | 0.02g |
| Calibration | N/A |
| Pan Size | 4.7" ø / 120mm ø |
| Power Supply | 12VDC 800mA adapter / Internal rechargeable battery |
| Interface | RS-232, USB |
| Net Weight | 4.4lb / 2kg |
| Electrical Safety Mark | CE, UL |
| Display Digit Height | 0.7" / 18mm |
| Readability | d=0.01g e=0.1g |
| Weighing Units | g, ct, kg, lb, oz, ozt, GN |
| Stabilization Time | 2.0 |
| Linearity | 0.02g |
| Construction | ABS plastic |
| Operating Temperature | 15° to 35°C / 59° to 95°F |
| Overall Dimensions | 6.9"x9.9"x3.1" / 174x252x80mm (wxdxh) |
| Approvals | NTEP: 18-004 |
| Battery Life (Hours) | 24.0 |
