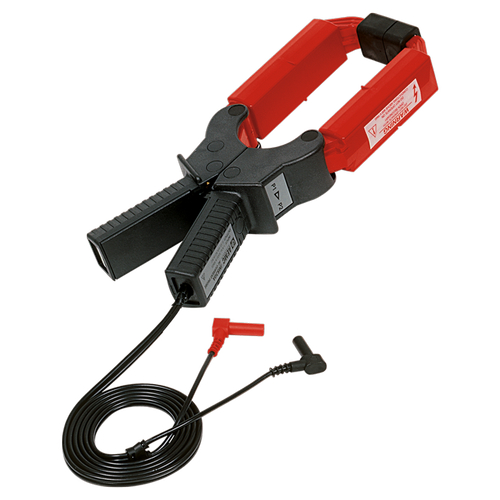

AEMC AC Current Probe Model JM830A

$510.00
SKU:
JM830A
Brand:
Quantity:

Product Description

AEMC AC Current Probe Model JM830A The JM830A is a high performance AC Current Probe with excellent transformation and low phase shift. The high quality magnetic core and uniform windings provide for accurate measurements up to 3600AAC. The squared jaw permits multiple conductor or bus bar positionings. Provide excellent TRMS capabilities and reliable signal reproduction. Maximum Conductor Size Cable: 2.52" (64mm)Bus bar: 1.97 x 5.31” (50 x 135mm), 2.52 x 3.94” (64 x 100mm) Current Range 2400AAC (3000AAC if ambient temperature <95°F / 35C°) Measurement Range 1 to 2400AAC (3000AAC if ambient temperature <95°F / 35C°) Output Signal 0.333mAAC / AAC (1A @ 3000A) Transformation Ratio 3000:1 Output 5 ft (1.5m) lead with 4mm safety banana plug Accuracy 50/60Hz 0.5% @ 3000A Frequency Range 30Hz to 5kHz Phase Shift <0.5° (at maximum rating) Load Impedance ≤5Ω Overload 3600A for 5 min Operating Temperature +14° to +122°F  (-10° to +50°C) Storage Temperature -13° to +176°F  (-25° to +80°C) Dimensions  (HxWxD) 4.72 x 12.40 x 1.89” (120 x 315 x 48mm) Weight 2.65 lbs (1200g) Pollution Degree 2 Rating UL 94 V0 (handles), ABS UL 94 V2 (jaws) Ingress Protection IP 20 Safety Compliance IEC 1010-2-32, 600V CAT III
