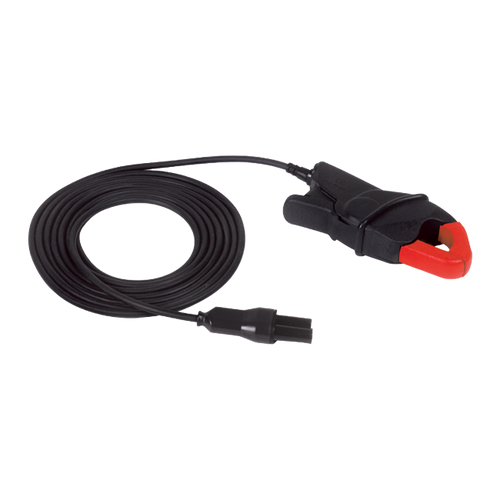

AEMC AC Current Probe Model MN93-BK

$194.00
SKU:
MN93-BK
Brand:
Quantity:

Product Description

AEMC AC Current Probe Model MN93-BK The AC Current Probe Model MN93-BK features 10’ leads and 200A capacity. This probe is designed for use with the following instruments: Models 3945/3945-B, 8220, 8230, 8333, 8335, 8336, PEL Series, L104 and L564. Clamping Diameter 0.78” (20mm) Current Range 240AAC Measurement Range 0.5 to 240AAC Lead Length 10 ft (3m) Output Termination Proprietary connector Accuracy (Typical) ±1% Power Source N/A Compatibility AEMC PowerPads and PELs (limited range with models 8220 and 8230) Operating Temperature 14° to +131°F  (-10° to +55°C); 10 to 85% RH Storage Temperature -40° to +158°F  (-40° to +70 °C); 10 to 90% RH Dimensions 5.47 x 2.0 x 1.18” (135 x 51 x 30mm) Weight 24 oz (690g) Pollution Degree 2 Protection IK 04, IP40 (jaws closed), IP30 (jaws open) Safety Compliance IEC 61010-1, IEC 61010-2-032, 600V CAT III, 300V CAT IV
