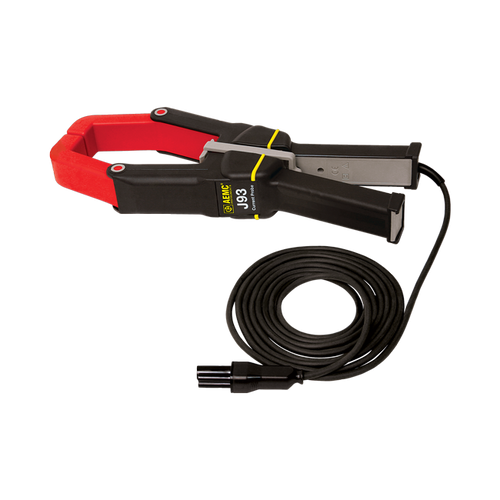

AEMC AC/DC Current Probe Model J93-BK

$2,495.00
SKU:
J93-BK
Brand:
Quantity:

Product Description

AEMC AC/DC Current Probe Model J93-BK   This Hall Effect current probe is designed to measure currents up to 5000ADC and 3500AAC, without opening the circuit. Features include: Jaw Φ 2.84" (72mm) 4-point CA-type connector with 10' (3m) lead Safety guard Zero adjustment Applications include monitoring wind power, rail signals, third rails, and general DC currents. This probe is designed for use with PowerPad III Power Quality Analyzers Models 8333 and 8336 and Power & Energy Loggers Models PEL Series Clamping Diameter 2.83” (72mm), bus bar 5 x 1.69” (127 x 43mm) Current Range 3500AAC / 5000ADC Measurement Range 50 to 3500AAC & 50 to 5000ADC Lead Length 10 ft (3m) Output Termination Proprietary connector Accuracy (Typical) ±1% Power Source 9V alkaline Battery Life 70 hours (typical) Compatibility AEMC 8333, 8336, 8435, and PELs Operating Temperature 14° to +131°F (-10° to +55°C); 10 to 85% RH Storage Temperature -40° to +158°F  (-40° to +70°C); 10 to 90% RH Dimensions 13.23 x 5.0 x 1.65” (336 x 127 x 42mm) Weight 3.75 lbs (1.7kg) Pollution Degree 2 Protection IK 04, IP40 (jaws closed), IP30 (jaws open) Safety Compliance IEC 61010-1, IEC 61010-2-032, 600V CAT III, 300V CAT IV
