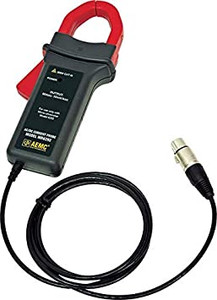

AEMC AC/DC Current Probe Model MR6292

$329.00
SKU:
MR6292
Brand:
Quantity:

Product Description

AEMC AC/DC Current Probe Model MR6292 The AC/DC Current Probe Model MR6292 is an accessory for the AEMC® Micro-Ohmmeter Model 6292. The Model MR6292 probe is required for using the Model 6292 to take measurements in BSG (both sides grounded) mode. The probe is designed to meet the latest safety and performance standards. The probe’s hook-shaped jaws enable you to “pry” into or “hook” onto cables (it will accept 2 x 500 MCM) or small bus bars. The Model MR6292 uses Hall effect technology. All electronics are self-contained in the handle. The output of the probe is 10mV/A. No battery is required; the probe operates via voltage provided by the Model 6292. The probe has a proportional mV output for direct reading on the Model 6292. Meter Compatibility AEMC 6292 Maximum Clamping Diameter One 1.18” (30mm) or two 0.95” (24mm) or two bus bars 1.2 x 0.4” (31.5 x 10mm) Current Range 50ADC Measurement Range 1 to 50ADC Accuracy 1.5%R ± 0.2A Output 5 ft (1.5m) lead with 4-conductor shielded cable with 5-pin XLR connector Power Source Powered by AEMC 6292 Operating Temperature 14° to +131°F  (-10° to +55°C); 90% RH Storage Temperature -40° to +176°F  (-40° to +80°C) Dimensions (HxWxD) 8.8 x 3.82 x 173” (224 x 97 x 44mm) Weight 15 oz (440g) Pollution Degree 2 Ingress Protection IP 30 EMC EN50081-1 Class B, EN50082-2 Electrostatic discharge, IEC 1000-4-2 Safety Compliance EN 61010-2-32, 600V CAT III
