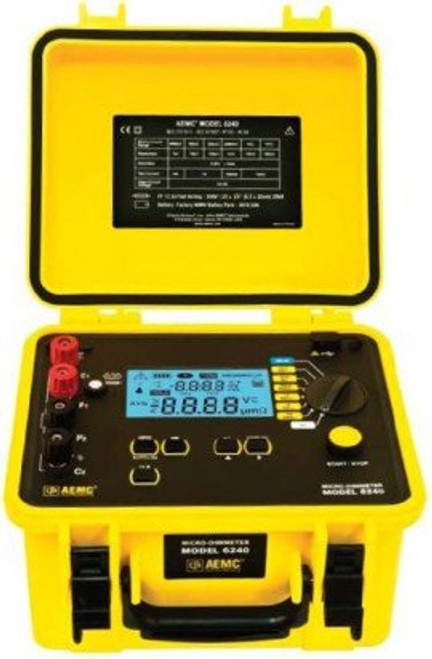

AEMC Micro-Ohmmeter Model 6240 (10A, Instantaneous, Continuous, Multiple Test with DataView? Software, Kelvin Clips/Probes not included)
(No reviews yet)
Write a Review
Write a Review
Aemc
AEMC Micro-Ohmmeter Model 6240 (10A, Instantaneous, Continuous, Multiple Test with DataView? Software, Kelvin Clips/Probes not included)
$2,800.00
- Brand
- Aemc
- SKU:
- 2131.02
- UPC:
- 6.85E+11
- Availability:
- DISCONTINUED, SEE 2129.8
AEMC 6240 Description
Designed to conduct tests on both resistive and inductive material, this Ohmmeter is capable of up to 99 measurements that can be stored and printed directly to a printer or from a PC. Polarity reversal is easy to accomplish with a push of a button. In addition, the resistance measurements for positive and negative test results and average are displayed. Features a large, easy-to-read multi-line backlit display that indicates all test result information, including the resistance measurement, test current, and test voltage. With a fully charged battery, this tester can perform up to 850, 10 A tests.
DataView® software included allows you to: download data, temperature compensate the test results, store data and print reports using predefined templates or custom templates you create.
Features
- Reliable low resistance measurements from 5 µΩ to 400 Ω
- Four-terminal Kelvin resistance measurement eliminates test lead resistance
- 10 A test current up to 4000 µΩ
- ±0.25% basic accuracy
- 1 µΩ resolution
- Direct reading, easy to operate
- Test current selection of 1 mA, 10 mA, 100 mA, 1 A and 10 A
- Six selectable resistance ranges
- Reverse polarity button
- Overload and input fuse protection
- Manufactured to international safety and environmental standards
- Automatic decimal point and zeroing
- Large terminals accept banana plugs and spaded lugs
- Rechargeable NiMH battery with internal charger (110/220 V)
- Large multifunctional backlit display
- DataView® software for data retrieval, real-time display, analysis and report generation
AEMC 6240 Specifications
| Range | 4000 µΩ 40m Ω 400 mΩ 4000 mΩ 40 Ω 400 Ω |
| Accuracy | 0.25% of reading ±2 cts |
| Resolution | 1 µΩ 10 µΩ 0.1 mΩ 1 mΩ 10 mΩ 100 mΩ |
| Test Current | 10 A 1 A 1 A 100 mA 10 mA 10 mA |
| Power Source | Rechargeable 6 V, 8.5 Ah NiMH batteries |
| Measurement Mode | Single test start/stop or auto test and store of multiple measurements |
| Memory | Stores up to 99 test results data in memory can be reviewed on the instrument display, on a PC or via direct printout |
Applications
- Ground connections and continuity measurement
- Resistance measurements on motors and small transformers
- Contact resistance measurements on breakers and switches
- Component measurement
- Electrical cable resistance measurement
- Mechanical bond tests
- Wire to terminal connections
- Aircraft and rail bonds
