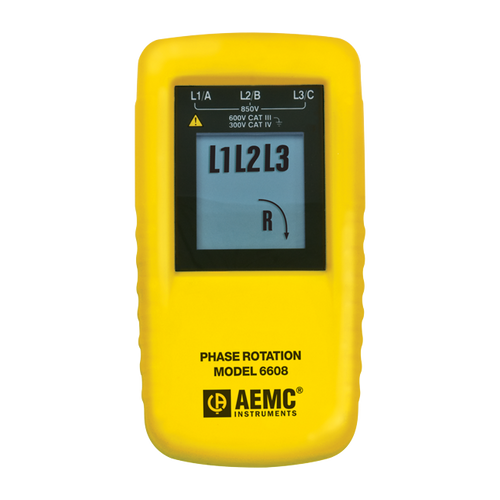

AEMC Phase Rotation Meter Model 6608
$89.00
- Brand
- Aemc
- SKU:
- 2121.10
- UPC:
- 6.85338E+11
- Availability:
- In Stock
AEMC 6608 Description:
The AEMC 6608 Phase Rotation Meter is a compact and rugged meter designed to identify phase rotation on 3-Phase systems and identify live and open/de-energized phases. Ideal for installing rotating machinery or motors, and for checking generator output.
Features
- Phase rotation indicators
- Color-coded leads (red, black, blue) and alligator clips (black)
- Simple operation
- Line supplied - no battery
- 600V CAT III rated and CE Mark
Applications
- Verify proper phase wiring
- Detect open or de-energized phases
- Determine correct wiring for proper rotation on motors, pumps, etc.
AEMC 6608 Specifications:
| Electrical | |
| Operating Voltage | 40 to 850V AC between phases |
| Frequency Range | 15 to 400Hz |
| Power Supply | Self-powered via the measurement inputs |
| Electrical Safety | 600V CAT III |
| Mechanical | |
| Dimensions | 5.1 x 2.7 x 1.3" (130 x 69 x 32mm) |
| Weight | 4.5 oz (130g) |
| Environmental | |
| Operating Temperature | 32 to 104°F (0 to 40°C) |
| Storage Temperature | -4 to 122°F (-20 to 50°C); RH < 80% |
| Safety Ratings | IEC 61010-1, DIN VDE 0411 IEC 61557-7, DIN VDE 0413-7 Tightness: IP 40 (as per IEC 60529 Ed.92) |
What's included with the AEMC 6608
- 6608 Phase Rotation Meter
- 3 x red, black, and blue test leads
- 3 x black alligator clips
- Soft carrying case
- Manual
