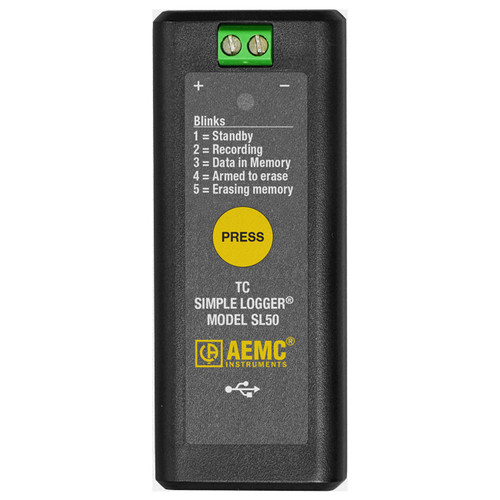

AEMC Instruments SL50 Description:
Features
- Simple 1 button operation
- Quick 2 wire input connection
- User configurable scaling, units of measure and recording length
- Stores up to 4 million measurements
- Data analysis software included
- Software provides real-time trend graph display, data download, analysis and report generation
- The input is configured to measure temperature from thermocouples, and supports types J, K, N, T, E, R and S
- Inputs are facilitated by two screw terminals
- Sample rate is 16/sec with a storage rate of once every two seconds of the average of all (32) the samples
- Scaling units of measure and recording length can be set through the software
- Real-time graphs can be displayed, downloaded data can be analyzed, and reports printed
- The front panel LED alerts the operator of the logger's status
Applications
- Circuit design troubleshooting
- Sensor monitoring
- Power supply profiling
- Finds sags and surges
- Track energy usage
- Count events and records
- Determine event sequencing
AEMC Instruments SL50 Specifications:
| Thermocouple | |
| J | Range: -328 to 2192°F (-200 to 1200°C) Resolution: 0.1°C Accuracy: Below -148°F (-100°C): ±(0.4% of reading + 9°F [5°C]); -148 to 212°F (-100° to 100°C): ±(0.3% of reading + 7.2°F [4°C]); Above 212°F (100°C): ±(0.2% of reading + 5.4°F [3°C]) |
| K | Range: -328 to 2502°F (-200 to 1372°C) Resolution: 0.1°C Accuracy: Below -148°F (-100°C): ±(0.4% of reading + 9°F [5°C]); -148 to 212°F (-100° to 100°C): ±(0.3% of reading + 7.2°F [4°C]); Above 212°F (100°C): ±(0.2% of reading + 5.4°F [3°C]) |
| N | Range: -454 to 2372°F (-270 to 1300°C) Resolution: 0.1°C Accuracy: Below -148°F (-100°C): ±(0.4% of reading + 9°F [5°C]); -148 to 212°F (-100° to 100°C): ±(0.3% of reading + 7.2°F [4°C]); Above 212°F (100°C): ±(0.2% of reading + 5.4°F [3°C]) |
| T | Range: -418 to 752°F (-250 to 400°C) Resolution: 0.1°C Accuracy: Below -148°F (-100°C): ±(0.4% of reading + 9°F [5°C]); -148 to 212°F (-100° to 100°C): ±(0.3% of reading + 7.2°F [4°C]); Above 212°F (100°C): ±(0.2% of reading + 5.4°F [3°C]) |
| E | Range: -418 to 1832°F (-250 to 1000°C) Resolution: 0.1°C Accuracy: Below -148°F (-100°C): ±(0.4% of reading + 9°F [5°C]); -148 to 212°F (-100° to 100°C): ±(0.3% of reading + 7.2°F [4°C]); Above 212°F (100°C): ±(0.2% of reading + 5.4°F [3°C]) |
| R | Range: 32 to 3200°F (0 to 1760°C) Resolution: 0.1°C Accuracy: 32 to 212°F (0° to +100°C): ±(0.3% of reading + 18°F [10°C]); Above 212°F (100°C): ±(0.2% of reading + 14°F [8°C]) |
| S | Range: 32 to 3200°F (0 to 1760°C) Resolution: 0.1°C Accuracy: 32 to 212°F (0° to +100°C): ±(0.3% of reading + 18°F [10°C]); Above 212°F (100°C): ±(0.2% of reading + 14°F [8°C]) |
| General Specifications | |
| Maximum Input Voltage | 1 V |
| Input Impedance | 800 K? |
| Power Source | Internal: 2 x 1.5 V AA non-rechargeable batteries External: USB 2.0 (computer or other power source, when powered by the USB the battery is automatically disconnected) |
| Power Consumption | Internal power: 1 mA (average) External power: 100 mW |
What's included with the AEMC Instruments SL50
- Data Logger
- Micro-B USB Cable
- Data Analysis Software
