Aven 26700-118 - MACRO LENS VIDEO INSPECTION SYSTEM WITH EIDOS CAMERA WITH 11.6 IN INTEGRATED MONITOR WITH ULTRAGLIDE BOOM STAND AND RING LIGHT WITH SECTOR AND BRIGHTNESS CONTROL

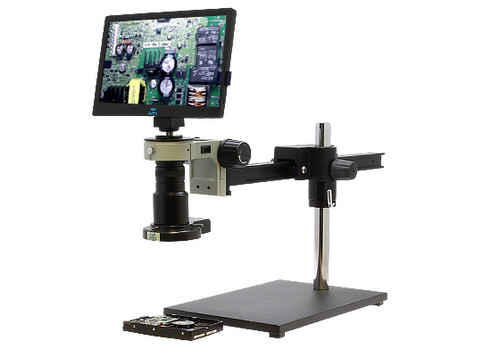

Aven 26700-118 Macro Vue Eidos Video Inspection System with Gliding Boom Stand

Macro Vue Eidos Video Inspection System with Gliding Boom Stand

Aven’s Macro Vue Eidos is a stand-alone high magnification inspection system. Reduce neck fatigue and eye strain while increasing productivity.

Includes:

• Mighy Cam Eidos camera 11.6" integrated HD monitor and 2M inspection camera
• Ultra-Glide Arm Boom Stand
• Macro-Zoom 7000 lens
• LED ring light with 60 LEDs
• E-Arm Focus Mount
• 7x to 40x magnification at a 6 inch working distance
• Wireless mouse for on-screen menu access

Inspection Simplified:

Neck strain and eye fatigue are a common occurrence with modern microscopes and can make routine inspection challenging. Stay focused, reduce fatigue while saving valuable bench top space with Aven’s all-in-one Macro Vue Eidos systems.

All-in-one High Magnification:

Have It All: Aven’s Macro Vue Eidos is a stand-alone inspection system. All of the components you need for high magnification are mounted together in this convenient, space-saving unit.

Mighty Cam Eidos:

Mighty Cam Eidos provides all of the features needed for digital inspection.

• 11.6" 1080p HD monitor
• SD card reader for image and video capture
• Menu system including exposure, white balance, grid overlays, image adjustment, compare mode, freeze frame + more
• USB output for connection to a PC for imaging and measurement software

Exceptional Optics:

• Wide zoom range for general inspection and analysis.
• For optical data, review the Magnification Tables.
• 7x to 40x magnification at a 6 inch working distance

Adjustable Illumination:

• 60 High Intensity LED Lights for shadow-free illumination
• Continuous Brightness Control
• Flicker Free
• Energy efficient

Gliding Boom Stand:

This glide arm boom stand with a heavy metal base is an excellent device for inspection applications that require magnification adjustment and the ability to move easily across a specimen.

Features:

• Improve inspection quality, reduce eye strain and fatigue
• Space-saving standard stand with focus mount
• Top-mounted adjustable Mighty Cam Eidos 2M integrated 2M Camera / 11.6" Monitor
• Wide range zoom lens with adjustable iris, zoom and focus
• 1080p color camera, 60 FPS with integrated software / USB image capture
• LED Ring Light with brightness control for shadow-free illumination
• Maximizes your bench top space with a unique compact design
