Aven SPZHT135-506 - SPZHT-135 TRINOCULAR MICROSCOPE 21X-135X MOUNTED ON TRACK STAND WITH OVERHEAD AND BACKLIGHT LEDS

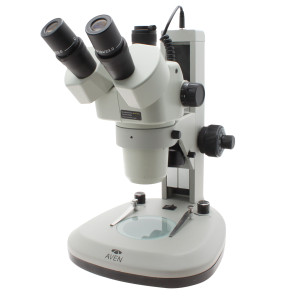

Aven SPZHT135-506 Trinocular Stereo Zoom Microscope 21 - 135x w/ LEDs

Aven, SPZHT135-506, Trinocular Stereo Zoom Microscope 21 - 135x on Track Stand with Top and Bottom LEDs

SPZHT135-506 Includes Only:

• Stereo Zoom Microscope
• Microscope Track Stand

Features:

• Total Magnification of 21X to 135X at 3.3'' (84mm) working distance, Max 180X with 20X eyepieces
• Standard High Eye Point wide field 15x eyepieces at 45 degrees for comfortable viewing even for operators with eyeglasses
• Diopter adjustment on both eyepiece tubes
• Adjustable Interpupillary Distance of 1.96'' (50mm) to 2.91'' (74MM) accommodates any operator
• Multi coated optical components, free from chromatic and spherical aberration
• Built-in overhead and backlight LEDs, no need for an external light source
• Individual dimmer controls for both LEDs
• Built-in clips for securing slides
• Frosted glass LED backlight diffusion plate
• Coarse and fine focus adjustment
• Smooth focus mount movement
• Large working distance (280mm track)
• Compact and light weight

SPZH-135 Stereo Zoom Microscope

The ideal scope for a wide range of investigative/inspection applications, Aven's dynamic microscope SPZH-135 extends the boundaries of stereo zoom microscopy, employing standard 15X eyepieces to achieve 21x to 135x continuous zoom magnification all the while providing a continuous working distance of 3.3'' (84mm). Replacing the standard 15X eyepieces with DHW20X eyepieces enhances the magnification range of this dynamic microscope further - 28X to 180X. Having eyepieces set at a 45 degree angle, the adjustable interpupillary distance between eyepieces of 1.96'' (50mm) to 2.91'' (74mm) means they can be set to the comfort level of any user. The SPZH-135 Binocular Stereo Zoom Microscope offers 21x to 135x continuous zoom with 10x eyepieces, making it an ideal and comfortable instrument for examining small parts. Magnification can be further enhanced with lenses.

Zoom Adjustment

Graduations on the zoom knob tell operators the exact magnifications at which they are working. For applications requiring very specific adjustments, this is a particularly convenient feature.

High Eye Point

10x Eyepieces ensure comfortable viewing for all operators, including those who require eyeglasses. Diopter Adjustment on both Eyepiece Tubes and a highly Adjustable Interpupillary Distance of 52mm to 75mm provides operators with even more flexibility in their individual applications.

Compact And Convenient

This lightweight and compact stand is designed with the operator in mind. Featuring adjustable overhead and backlight LEDs, there is no need for an external light source. The focus mount can be moved to any position along the 280mm track.

Overhead LED Light

The overhead LED light shines bright light on the subject below the microscope. The light can be tilted to the desired angle
