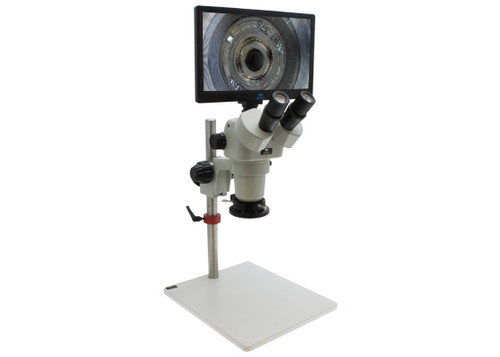

Aven 26800B-373-3 - STEREO ZOOM MICROSCOPE SPZ-50 ON POST STAND WITH INTEGRATED MONITOR AND ADJUSTABLE POLARIZER

Aven 26800B-373-3 SPZV-50 Stereo Zoom Trinocular Microscope

Aven, 26800B-373-3, SPZV-50 Stereo Zoom Trinocular Microscope with Standard Stand 26800B-570, Focus Mount 26800b-517, Edios Camera with Integrated Monitor 26100-260 and Ring Light with Polarizer 26200B-222 and Ring Light Adapter 26800B-460

Includes:

• Stereo Zoom Trinocular Microscope
• LED Ring Light with Adjustable Polarizer
• Ring Light Adapter
• Pole Stand
• Mighty Cam Eidos
• Focus Mount

SPZV-50 Stereo Zoom Microscope

SPZV-50 true trinocular stereo zoom microscopes offers the best in class zoom ratio with super sharp 3D images, wide field of view and long working distance which makes it an ideal choice for inspection and capturing and viewing images on an monitor. High precision optics ensures excellent contrast and high definition 3D images from edge to edge.

• View images through the eyepiece or a monitor simultaneously.
• Click stop zoom adjustment for accurate measuring
• Easy adjust C-mount camera adapter for fine focusing
• Large zoom ratio 7.46:1- best zoom ratio in class
• Field of View 34.3mm to 3.6mm (1.35? to 0.14?)
• Working distance 108mm (4.25?) – the best in class
• 17mm (0.67?) high eye point wide field 10x eyepieces (field number 23) for comfortable viewing even for operators with eyeglasses
• Diopter adjustment on both eyepiece tubes

Dual Viewing Options with Aven’s Mighty Cam Eidos

Aven Mighty Eidos – Integrated HD monitor and inspection camera. Connect to any C/CS mount microscope or video lens. View High Res 1080p HD images on the 11.6? LCD monitor. No computer or external monitor required for inspection or image/video capture. Features a built-in SD card slot for file capture, and a USB output for PC connectivity. Includes wireless mouse to control menu settings.

• Convenient 2-in-one camera and monitor system
• Simple cable management
• 1080p HD image at 60FPS
• Built in SD card reader for instant image/video capture
• USB output for connection to your PC
• Wireless mouse for access to settings menus
• Grid overlays
• Compare mode, freeze mode and mirror mode
• Alleviate the eye strain and neck fatigue associated with frequent microscope use

Brightness Adjustment

Aven’s LED Ring Light with Adjustable Polarizer features a built-in brightness dial for precise illumination control of 120 LEDs.

16 Inch Post Stand

This heavy duty stand is perfect for applications where horizontal extension is limited. Large base 279 x 330 x 12.7mm to accommodate a large variety of parts.

• Aluminum powder coated base
• All metal construction
• UNC bolt and safety clamp included
