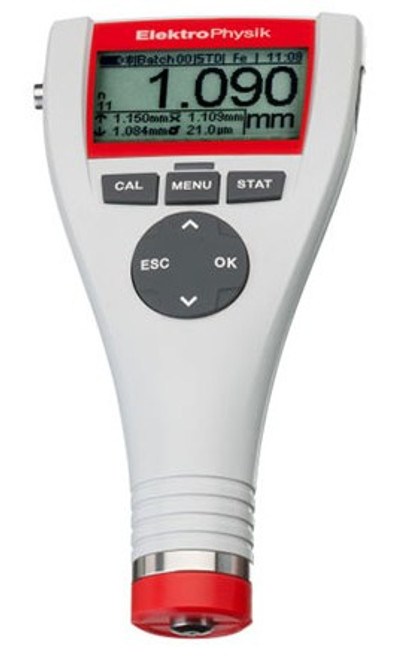

Elektro Physik MiniTest 725 N7 Coating Thickness Gauge, non-ferrous metals, 7.0 mm

ElektroPhysik MiniTest 725 N7 Description

p>The MiniTest 725 coating thickness gauge is the solution to all your coating thickness problems where a reliable finish and perfect product appearance play a major role for long-term value and success, e.g. in the automotive and shipbuilding industry, steel- and bridge construction or in the electroplating industry, to name a few industries.

It is ergonomically designed and its rounded shape allows the MiniTest gauge to fit perfectly into the palm of your hand. It also features a measuring speed setting option that allows adjustment to changing requirements for utmost efficiency and optimum productivity: taking many readings in a short time with medium precision or taking only a few readings with increased accuracy.

The 725 facilitates non-destructive coating measurement of non-magnetic coatings (paint, synthetic material, chromium etc.) on ferromagnetic substrates (steel) and of insulating coatings (varnish, enamel, synthetic material, anodising aluminium etc.) on conductive substrates (aluminium, copper, austenitic stainless steel).

Its sensors perfectly compensate for irregular shaped surfaces thanks to the predefined calibration methods that are available to adapt to a wide range of different surface conditions and accuracy requirements.

Features

• Integrated N7.0 sensor
• Bluetooth
• USB interfaces
• Wear resistant sensors
• Graphical menu control
• Above average precision and repeat accuracy
• Temperature compensation across the entire range
• Wear-protected, polished sensor poles
• High immunity to electromagnetic (EMC) interference
• Internal characteristic curve with up to 50 data points
• Automatic compensation of the conductive value in the case of non-ferrous metals
• Instructions in 20 languages

Available SIDP® probes for the MiniTest 725

SIDSP® is a world wide leading technology for coating thickness sensors. With this new technology, another new benchmark for innovative coating thickness measurement has been set. SIDSP® stands for Sensor-Integrated Digital Signal Processing – a technology where the signals are completely processed into digital form inside the sensor at the time and point of measurement. SIDSP® sensors are manufactured according to completely new state-of-the-art production techniques.

Unlike conventional techniques, the SIDSP® sensors create and control the excitation signals for the sensor head inside the sensor. The return signals are directly digitally converted and processed at a 32 bits accuracy to give you the complete coating thickness value. For this technique, highly sophisticated methods of digital signal processing are used as known from modern telecommunication technologies (mobile phone networks) such as digital filters, base band converting, averaging, stochastic analysis, etc. This enables the user to achieve a signal quality and precision unmatched so far with analogue signal processing. The thickness value is digitally transmitted via the sensor cable to the display unit. Setting a new standard in coating thickness measurement, this technology offers decisive advantages and improvements compared to the commonly used analogue sensors.

This configuration includes the N7 sensor only; however, these are the other options available to you.

ElektroPhysik MiniTest 725 N7 Specifications

table class="table table-striped"> Sensor Embodiment Fixed Internal, Non-Changeable Integrated Sensor N7.0 - 7.0 mm No. of Measurement Series 10 Measurement Memory 10,000 Limit Monitoring Optical and Acoustical Signaling Display Graphics Display, Adjustable Lighting Power Supply 2 batteries AA / LR-06 / Mignon or rechargeable NiMH cells AA / HR6 Operating Temperature Range 14 to 140°F (-10 to 60°C) Storage Temperature Range -4 to 158°F (-20 to 70°C) Dimensions 6.18 x 2.97 x 1.93" (157 x 75.5 x 49 mm) Weight Approx. 175 g / 6.2 oz Uncertainty (of Reading) ± 1.5 µm (0.059 mils) + 0.75% Minimum Measuring Point 0.40" (10 mm) ElektroPhysik MiniTest 725 N7

What's included with the ElektroPhysik MiniTest 725 N7

• Coating Thickness Gauge
• Integrated N7 SIDSP Sensor
• Calibration Set with Calibration Standards and Zero Reference Plate(s)
• MSoft 7 Basic Data Transfer Software
• Carrying Case with Strap
• 2 x AA Batteries
• Manufacturer's Certificate
• User Guide on CD
