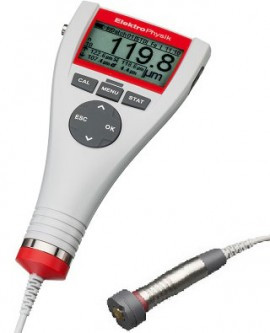

Elektro Physik MiniTest 735 Coating Thickness Gauge with F1.5-90 sensor, type C

ElektroPhysik MiniTest 735 F1.5-90 Description

p>The MiniTest 735 is ergonomically designed and its rounded shape allows the MiniTest gauge to fit perfectly into the palm of your hand. It also features a measuring speed setting option that allows adjustment to changing requirements for utmost efficiency and optimum productivity: taking many readings in a short time with medium precision or taking only a few readings with increased accuracy.

It facilitates non-destructive coating measurement of non-magnetic coatings (paint, synthetic material, chromium etc.) on ferromagnetic substrates (steel) and of insulating coatings (varnish, enamel, synthetic material, anodising aluminium etc.) on conductive substrates (aluminium, copper, austenitic stainless steel).

Its sensors perfectly compensate for irregular shaped surfaces thanks to the predefined calibration methods that are available to adapt to a wide range of different surface conditions and accuracy requirements.

Features

• External F1.5-90 sensor, Type C
• Includes Factory "Works" Certificate
• Correct readings with interference free measurement with precise evaluation through SIDSP®
• Automatic substrate identification with FN sensors
• Efficient temperature compensation
• High precision characteristic curves achieved during the manufacturing process by calibrating up to 50 calibration points
• Large memory capacity for storing up to 10,000 readings
• Readings and statistical values can be called-up individually
• Easy menu-guided operation, 20 menu languages available
• Measurement data can be transferred by Bluetooth or USB to PCs, tablets or smart phones
• Future-proof through downloadable sensor and gauge software updates
• Audible and visual (red and green LED) alarms
• Large, easy-to-read backlit graphics display
• Display orientation can rotate 180° so readings will never be upside down
• Factory set, zero, 2-point, 3-point and roughness calibration

Available SIDP® probes for the MiniTest 735

SIDSP® is a world wide leading technology for coating thickness sensors. With this new technology, another new benchmark for innovative coating thickness measurement has been set. SIDSP® stands for Sensor-Integrated Digital Signal Processing – a technology where the signals are completely processed into digital form inside the sensor at the time and point of measurement. SIDSP® sensors are manufactured according to completely new state-of-the-art production techniques.

Unlike conventional techniques, the SIDSP® sensors create and control the excitation signals for the sensor head inside the sensor. The return signals are directly digitally converted and processed at a 32 bits accuracy to give you the complete coating thickness value. For this technique, highly sophisticated methods of digital signal processing are used as known from modern telecommunication technologies (mobile phone networks) such as digital filters, base band converting, averaging, stochastic analysis, etc. This enables the user to achieve a signal quality and precision unmatched so far with analogue signal processing. The thickness value is digitally transmitted via the sensor cable to the display unit. Setting a new standard in coating thickness measurement, this technology offers decisive advantages and improvements compared to the commonly used analogue sensors.

This configuration includes the F1.5-90 sensor only; however, these are the other options available to you.

ElektroPhysik MiniTest 735 F1.5-90 Specifications

table class="table table-striped"> Sensor Type External - F1.5-90 No. of Measurement Series 10 Measurement Memory 10,000 Memory Batches Include readings, a defined calibration mode, parameters and statistics calculated from batch readings Calibration Modes Factory calibration, zero-point, 2-points, 3-point calibration, calbiration method "rough", user-adjustable off-set value, user-adjustable correction value for substrate roughness Measuring Units Metric (µm, mm, cm) / Imperial (mils, inch, thou) switchable Display Large graphical display, backlit, 180° rotatable Operating Temperature Range 14°F - 140°F (-10°C - 60°C) Storage Temperature Range -4°F - 158°F (-20°C - 70°C) Power Supply 2 x AA (Mignon cells), rechargeable NiMH accu batteries type AA/HR6 (as an option) Dimensions 6.18 x 2.97 x 1.93" (157 x 75.5 x 49 mm) Weight Approx. 210 g ElektroPhysik MiniTest 735 F1.5-90

What's included with the ElektroPhysik MiniTest 735 F1.5-90

• Coating Thickness Gauge
• External F1.5-90 SIDSP Sensor
• Calibration Set with Calibration Standards and Zero Reference Plate(s)
• MSoft 7 Basic Data Transfer Software
• Carrying Case with Strap
• 2 x AA Batteries
• Manufacturer's Certificate
• User Guide on CD
