Elektro Physik MiniTest 745 Coating Thickness Gauge

ElektroPhysik MiniTest 745 Description

The solution to all your coating thickness problems where a reliable finish and perfect product appearance play a major role for long-term value and success.

The MiniTest 745 gauge features a measuring speed setting option that allows adjustment to changing requirements for utmost efficiency and optimum productivity: taking many readings in a short time with medium precision or taking only a few readings with increased accuracy. Also, the MiniTest 745 is ergonomically designed and its rounded shape allows the MiniTest gauge to fit perfectly into the palm of your hand.

All available sensors perfectly compensate for irregular shaped surfaces thanks to the predefined calibration methods that are available to adapt to a wide range of different surface conditions and accuracy requirements.

Features

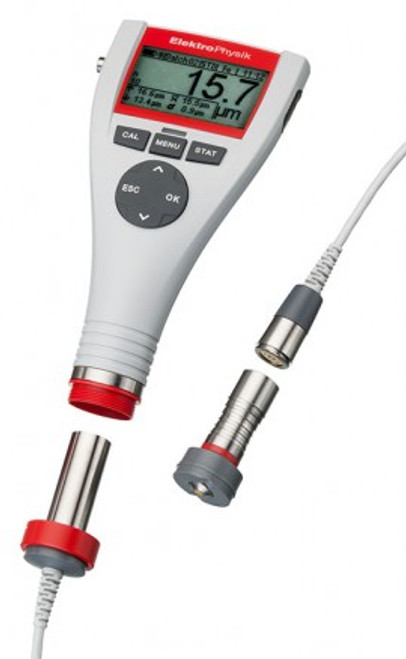

• The probes can be connected internally as well as externally by cable and also without cable via Bluetooth
• Includes Factory "Works" Certificate. NIST Certificate optional
• Correct readings with interference free measurement with precise evaluation through SIDSP®
• Extended field of application through exchangeable sensors to cover different ranges up to 15 mm (600 mils) thickness
• High flexibility of use through versatile sensors; the MiniTest 740 sensor can be changed from built-in to external sensor on a lead
• Efficient temperature compensation
• Automatic substrate identification with FN sensors
• High precision characteristic curves achieved during the manufacturing process by calibrating up to 50 calibration points
• Large memory capacity for storing up to 100,000 readings
• Readings and statistical values can be called-up individually
• Easy menu-guided operation, 20 menu languages available
• Future-proof through downloadable sensor and gauge software updates
• Audible and visual (red and green LED) alarms
• Large, easy-to-read backlit graphics display
• Display orientation can rotate 180° so readings will never be upside down
• Factory set, zero, 2-point, 3-point and roughness calibration

Applications

• Automotive
• Ship Building
• Steel & Bridge Construction
• Electroplating

---

Available SIDP® probes for the MiniTest 745

SIDSP® is a world wide leading technology for coating thickness sensors. With this new technology, another new benchmark for innovative coating thickness measurement has been set. SIDSP® stands for Sensor-Integrated Digital Signal Processing – a technology where the signals are completely processed into digital form inside the sensor at the time and point of measurement. SIDSP® sensors are manufactured according to completely new state-of-the-art production techniques.

Unlike conventional techniques, the SIDSP® sensors create and control the excitation signals for the sensor head inside the sensor. The return signals are directly digitally converted and processed at a 32 bits accuracy to give you the complete coating thickness value. For this technique, highly sophisticated methods of digital signal processing are used as known from modern telecommunication technologies (mobile phone networks) such as digital filters, base band converting, averaging, stochastic analysis, etc. This enables the user to achieve a signal quality and precision unmatched so far with analogue signal processing. The thickness value is digitally transmitted via the sensor cable to the display unit. Setting a new standard in coating thickness measurement, this technology offers decisive advantages and improvements compared to the commonly used analogue sensors.

This configuration does not come with any of the probes; it is the main unit only; however, these are the options available to you.

ElektroPhysik MiniTest 745 Specifications

table class="table table-striped"> Sensor Type Convertible from external to built-in sensor Number of Measurement Memories 100, user-definable memory arrangement according to batches Measurement Memory 10,000 Memory Batches Include readings, a defined calibration mode, parameters and statistics calculated from batch readings Calibration Modes Factory calibration, zero-point, 2-points, 3-point calibration, calbiration method "rough", user-adjustable off-set value, user-adjustable correction value for substrate roughness Measuring Units Metric (µm, mm, cm) / Imperial (mils, inch, thou) switchable Display Large graphical display, backlit, 180° rotatable Operating Temperature Range 14 to 140°F (-10 to 60°C) Storage Temperature Range -4 to 158°F (-20 to 70°C) Data Interfaces Bluetooth® 4.0, Bluetooth Smart®, Mini-USB Power Supply 2 x AA (Mignon cells), rechargeable NiMH accu batteries type AA/HR6 (as an option) Dimensions 6.18 x 2.97 x 1.93" (157 x 75.5 x 49 mm) Weight Approx. 175 g ElektroPhysik MiniTest 745

What's included with the ElektroPhysik MiniTest 745

• Coating Thickness Gauge
• Calibration set with calibration standards and zero reference plate(s)
• MSoft 7 basic data transfer software
• Manufacturer's Certificate
• Pouch with neck strap
• 2x AA Batteries
• Instruction manual on CD
