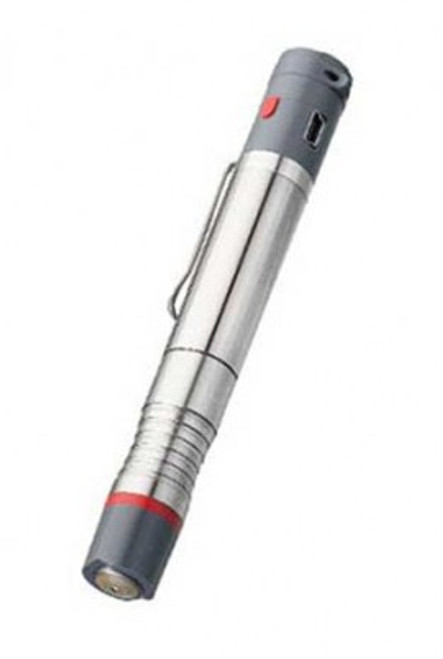

ElektroPhysik SmarTest Coating Thickness Sensor with Bluetooth

ElektroPhysik SmarTest Description

strong>Features

• Precision coating thickness gauge with digital sensor
• Transfer of measuring data via Bluetooth, range of approx. 10 m
• Display and operation by app in 4 languages currently (German, English, French and Chinese)
• Wear resistant probes with a virtually unlimited life
• Optimal temperature compensation by individual compensation characteristic curves
• High precision characteristic curves with up to 50 support points in the manufacturer's calibration
• Battery charge lasts for more than 8 hours of operation
• Batteries are charged using a mini USB socket
• Internal battery control prevents incorrect measurements caused by low battery charge
• Storage and transmission of measuring data in the CSV format

Applications

• Non-magnetic coatings like varnishes, enamels, chromium and zinc on ferromagnetic base materials (e.g. steel)
• Insulating coatings like varnishes and anodising aluminium on nonferrous metals (e.g. aluminium, austenitic stainless steel, brass)

ElektroPhysik SmarTest Specifications

table class="table table-striped"> Low Range Resolution 0.05 µm / 0.002 mils Minimum Curvature Radius convex: 1.5 mm / 59 mils
concave: 7.5 mm / 295 mils Minimum Measuring Area Ø 5 mm / 197 mils Operating Temperature 14 to 140 °F (-10 to 60 °C) Storing Temperature -4 to 158 °F (-20 to 70 °C) Power Supply LiFePO4 battery operating time approx. 8 hours continuous operation Dimensions 125 mm x ø 16 mm / 4.9" x ø 0.63" Weight 48 g / 1.7 oz

What's included with the ElektroPhysik SmarTest

• Coating Thickness Sensor
• Calibration Set with Calibration Standards and Zero Reference Plate(s)
• USB Charger with Mini USB Cable
• Manufacturer's Certificate
• Storage Case
• Operating Manual
