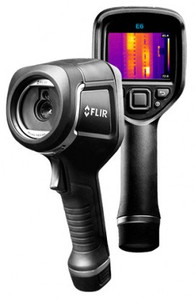

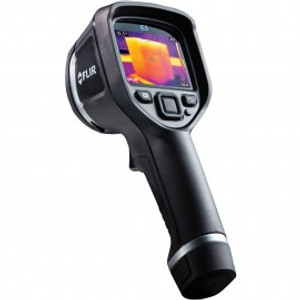

FLIR E8-XT Infrared Camera with MSX & Wi-Fi, 320 x 240, -4 to 1022°F

Gain a competitive advantage with this infrared camera which has MSX® technology for extraordinary thermal imaging detail. In addition, this camera has Wi-Fi connectivity via the FLIR Tools® mobile app which makes sharing images and sending reports from any location easier and enables you to make critical decisions fast.

Easy to use

Intuitive graphic interface simplifies measurements in both thermal and MSX mode.

Fully automatic and focus-free
Accurately measure your target using center spot or maximum/minimum area box
Navigate easily to on-screen settings, image modes, and measurement tools using simple button controls
Activate MSX to enhance IR images with visual detail for better perspective and interpretation

Convenient to share images and findings

Download images, create reports, and share what you've found instantly.

Records standard JPEGs with embedded temperature data for easy sharing with clients
Wi-Fi connectivity to mobile devices via the FLIR Tools® mobile app
Rapid Wi-Fi or USB image transfer for documentation
Image analysis and editing, plus report creation, through FLIR Tools®

Compact and rugged

Built for portability and safe, efficient use in harsh environments.

Lightweight and well-balanced at just 1.2 lbs (0.575 kg)
Withstands a 6.56' (2 m) drop test
IP54 enclosure provides a high level of protection against dust and water
Comes with 2-year warranty coverage on the camera and 10-year coverage for the detector

Applications

Building
Electrical
Mechanical

FLIR 63908-0905 Specifications

IR Resolution	320 x 240 (76,800 pixels)
Thermal Sensitivity/NETD	<0.09°F (0.05°C)/<50 mK
Spatial Resolution (IFOV)	2.6 mrad
Field of View	45 x 34°
F-Number	1.5
Image Frequency	9 H
Spectral Range	7.5 to 13 ?m
Image Modes	Thermal MSX, thermal, picture-in-picture, thermal blending, digital camera
Color Palettes	Iron, rainbow, black and white
Object Temperature Range	-4 to 1022°F (-20 to 550°C) in two ranges
Accuracy	±3.6°F (±2°C) or ±2% of reading for ambient temperature 50 to 95°F (10 to 35°C) and object temperature above 32°F (0°C)
Dimensions	9.6 x 3.7 x 5.5" (244 x 95 x 140 mm)
Weight	1.27 lbs (0.575 kg)

FLIR 63908-0905 Includes:

Infrared Camera
USB Cable
Power Supply/Charger with EU, UK, US and Australian Plugs
Hard Carrying Case
Battery
Printed Documentation
