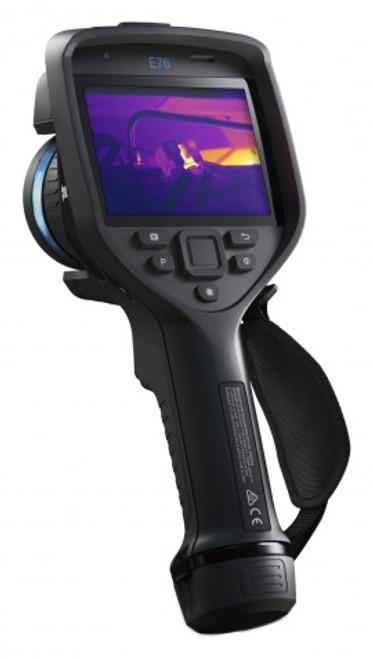

FLIR 78514-1101, E76 Advanced Thermal Camera w/MSX 320 x 240 Resolution/30Hz w/24? and 14? Lens
Write a Review
FLIR
FLIR 78514-1101, E76 Advanced Thermal Camera w/MSX 320 x 240 Resolution/30Hz w/24? and 14? Lens
- Brand
- FLIR
- SKU:
- 78514-1101
- UPC:
- 8.45E+11
- Availability:
- In Stock
- Model No:
- FLIR E76-24-14
FLIR 78514-1101 Offers
Provides complete coverage of near and far targets through a range of interchangeable AutoCal lenses, with fields of view for everything from wide-angle roof inspections to electrical inspections, all performed from a safe distance. It comes equipped with an optional temperature range to 1832°F (1000°C), laser-assisted autofocus, and three area measurement boxes, along with a 320 x 240 thermal resolution to produce crisp, vibrant imagery that can be enhanced with MSX® technology for added detail and perspective. The onboard Inspection Route feature runs pre-planned survey routes to help inspectors stay organized when surveying large or multiple locations.
Interchangeable,
Telephoto, standard, and wide angle autoCal lenses help users survey large targets quickly, check machines for signs of failure, or inspect electrical
Improved contrast for
Use 1-touch level/span to instantly improve image contrast and highlight potential electrical or
Streamlined reporting
Onboard integration with routing software, a built-in mic for voice annotation, and report generation features all help the camera streamline
Applications
Condition monitoring
Improve plant reliability and avoid unexpected downtime through routine inspection with a rugged, handheld camera. Vibrant thermal images help manufacturing and facilities inspectors spot overheating equipment so they can immediately diagnose the issue, begin repairs, and prevent
Faster inspections
Pre-planned routes can improve survey efficiencies, helping users inspect dozens of electrical and mechanical targets in a logical manner and maintain organized inspection data and reports. The camera makes this possible through the built-in Inspection
Inspection Route runs a pre-defined list of targets that are organized for maximum efficiency. This list is first created in Thermal Studio Pro (sold separately) using the FLIR Route Creator plugin and then downloaded
By ensuring that nothing is missed and that all inspection results are organized from the start, this suite of inspection software speeds up surveys, improves organization, and
Compare the New Exx-Series Models
| ENTRY | GOOD | BETTER | BEST |
| FLIR E54 | FLIR E76 | FLIR E86 | FLIR E96 |
| 320 × 240 Fixed-Lens Thermal Camera | 320 × 240 Thermal Camera with AutoCal Lenses | 464 × 348 Thermal Camera with AutoCal Lenses | 640 × 480 Thermal Camera with AutoCal Lenses |
| - - | - - | - - | - - |
FLIR 78514-1101 Specifications
| IR Resolution | 320 x 240 pixels |
| Resolution with UltraMax Enhancement | 307,200 pixels |
| MSX Image Enhancement | Yes: details from visual camera add depth and perspective |
| Built-in Visual Camera | 5 MP, fixed focus, with built-in LED light |
| Thermal Sensitivity | <30 mK at 86°F (30°C) |
| Temperature Range | -4 to 248°F (-20 to 120°C) 32 to 1202°F (0 to 650°C) |
| Accuracy | ±3.6°F (±2°C) or ±2% of the reading |
| Focus Modes | Continuous laser distance meter (LDM), one-shot LDM, one-shot contrast, manual |
| Digital Zoom | 1 to 4x continuous |
| Measurement Tools | 3 spot meters in live mode, 3 area meters in live mode |
| Measurement Presets | None, center spot, hot spot, cold spot, User Presets 1 and 2 |
| Lenses | 14 and 24° |
| Lens Identification | Automatic (FLIR AutoCal) |
| On-Camera Routing Software | FLIR Inspection Route enabled |
| On-Camera Report Building | Voice annotation and GPS tagging to images and video; on-screen text; sketch on infrared images from touchscreen |
| FLIR Software Integration | FLIR Thermal Studio Starter, FLIR Thermal Studio (optional), FLIR Thermal Studio Pro (optional), FLIR Research Studio (optional) |
| Communication Modes | USB 2.0, Bluetooth, Wi-Fi, DisplayPort |
| Display | 640 x 480 pixels (VGA) |
| Drop Testing | 6.6' (2 m) |
| Battery Operation Time | >2.5 hours, typical use |
| Dimensions | 11 x 4.6 x 4.4" (279.4 x 116.84 x 111.76 mm) |
| Weight | 2.2 lbs (0.99 kg) |
What's included with the FLIR 78514-1101
- Thermal Camera
- 14° Lens
- 24° Lens
- SD Card (8 GB)?
- USB 2.0 A to USB Type-C Cable,? 1 M
- USB Type-C to HDMI Adapter,? Standard Specification UH311
- USB Type-C to USB Type-C Cable (USB 2.0 Standard)?,? 1 M
- Screws
- Accessory Box II
- Accessory Box III
- Torx T10 Wrench
- Carabiner Hook
- Front Protection
- Front Protection Fastener
- Lanyard Strap,? Camera
- Lens Cap Strap
- Wrist Strap
- Lens Cap,? Front
- Hand Strap
- Hand Strap Bracket, Left and Right
- Hard Carrying Case
- Power Supply for Battery Charger
- Power Supply,? 15 W/3 A
- Battery Charger
- 2 x Battery
- Printed Documentation
- FLIR Thermal Studio Starter
