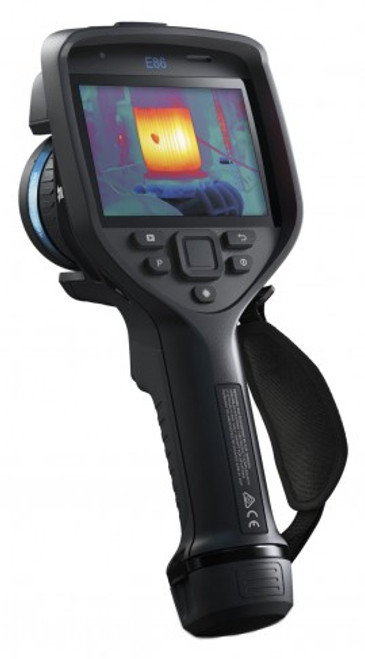

FLIR 78516-1301, E86 Advanced Thermal Camera w/MSX 464 x 348 Resolution/30Hz w/24?, 14? and 42? Lens
Write a Review
FLIR
FLIR 78516-1301, E86 Advanced Thermal Camera w/MSX 464 x 348 Resolution/30Hz w/24?, 14? and 42? Lens
- Brand
- FLIR
- SKU:
- 78516-1301
- UPC:
- 8.45E+11
- Availability:
- In Stock
- Model No:
- FLIR E86-24-14-42
FLIR 78516-1301 Offers
Packed with high-performance features needed for fast, accurate detection of hot spots and hidden deficiencies, this 464 x 348-pixel thermal camera has an expanded temperature measurement range for easier detection of hot spots and hidden anomalies in electrical and mechanical assets. Interchangeable AutoCal lenses offer complete coverage of near and distant targets, while imaging technology such as UltraMax® and MSX® ensure crisp, vibrant thermal images. The onboard Inspection Route feature runs pre-planned survey routes to help inspectors stay organized when surveying large or
Laser distance
The laser distance meter aids in quick, precise autofocusing and provides data for on-screen area
Intelligent
Interchangeable, auto-calibrating lenses - from telephoto to wide-angle - allow users to target electrical hot spots safely, check for mechanical faults, and survey roofs or building
Streamlined reporting
Onboard integration with routing software, a built-in mic for voice annotation, and report generation features all help the camera streamline
Applications
Condition monitoring
Improve plant reliability and avoid unexpected downtime through routine inspection with a rugged, handheld camera. Vibrant thermal images help manufacturing and facilities inspectors spot overheating equipment so they can immediately diagnose the issue, begin repairs, and prevent
Building inspection
Improve energy efficiency and discover insulation voids, roof leaks, HVAC deficiencies and more. Instead of wasting time hunting for the problem, users can quickly validate the need for comprehensive repairs and demonstrate the extent of the damage through easily-interpreted
Faster inspections
Pre-planned routes can improve survey efficiencies, helping users inspect dozens of electrical and mechanical targets in a logical manner and maintain organized inspection data and reports. The camera makes this possible through the built-in Inspection
Inspection Route runs a pre-defined list of targets that are organized for maximum efficiency. This list is first created in Thermal Studio Pro (sold separately) using the FLIR Route Creator plugin and then downloaded
By ensuring that nothing is missed and that all inspection results are organized from the start, this suite of inspection software speeds up surveys, improves organization, and
Compare the New Exx-Series Models
| ENTRY | GOOD | BETTER | BEST |
| FLIR E54 | FLIR E76 | FLIR E86 | FLIR E96 |
| 320 × 240 Fixed-Lens Thermal Camera | 320 × 240 Thermal Camera with AutoCal Lenses | 464 × 348 Thermal Camera with AutoCal Lenses | 640 × 480 Thermal Camera with AutoCal Lenses |
| - - | - - | - - | - - |
FLIR 78516-1301 Specifications
| IR Resolution | 464 x 348 pixels |
| Resolution with UltraMax Enhancement | 645,888 pixels |
| MSX Image Enhancement | Yes: details from visual camera add depth and perspective |
| Built-in Visual Camera | 5 MP, fixed focus, with built-in LED light |
| Thermal Sensitivity | <30 mK at 86°F (30°C) |
| Temperature Range | -4 to 248°F (-20 to 120°C) 32 to 1202°F (0 to 650°C) 572 to 2732°F (300 to 1500°C) |
| Accuracy | ±3.6°F (±2°C) or ±2% of the reading |
| Focus Modes | Continuous LDM, one-shot LDM, one-shot contrast, manual |
| Digital Zoom | 1 to 4x continuous |
| Measurement Tools | 3 spot meters in live mode, 3 area meters in live mode |
| Measurement Presets | None, center spot, hot spot, cold spot, User Presets 1 and 2 |
| Lenses | 14, 24, and 42° |
| Lens Identification | Automatic (FLIR AutoCal) |
| On-Camera Routing Software | FLIR Inspection Route enabled |
| On-Camera Report Building | Voice annotation and GPS tagging to images and video; on-screen text; sketch on infrared images from touchscreen |
| FLIR Software Integration | FLIR Thermal Studio Starter, FLIR Thermal Studio (optional), FLIR Thermal Studio Pro (optional), FLIR Research Studio (optional) |
| Communication Modes | USB 2.0, Bluetooth, Wi-Fi, DisplayPort |
| Display | 640 x 480 pixels (VGA) |
| Drop Testing | 6.6' (2 m) |
| Battery Operation Time | >2.5 hours, typical use |
| Dimensions | 11 x 4.6 x 4.4" (279.4 x 116.84 x 111.76 mm) |
| Weight | 2.2 lbs (0.99 kg) |
What's included with the FLIR 78516-1301
- Thermal Camera
- 14° Lens
- 24° Lens
- 42° Lens
- SD Card (8 GB)?
- USB 2.0 A to USB Type-C Cable,? 1 M
- USB Type-C to HDMI Adapter,? Standard Specification UH311
- USB Type-C to USB Type-C Cable (USB 2.0 Standard)?,? 1 M
- Screws
- Accessory Box II
- Accessory Box III
- Torx T10 Wrench
- Carabiner Hook
- Front Protection
- Front Protection Fastener
- Lanyard Strap,? Camera
- Lens Cap Strap
- Wrist Strap
- Lens Cap,? Front
- Hand Strap
- Hand Strap Bracket, Left and Right
- Hard Carrying Case
- Power Supply for Battery Charger
- Power Supply,? 15 W/3 A
- Battery Charger
- 2 x Battery
- Printed Documentation
- FLIR Thermal Studio Starter
