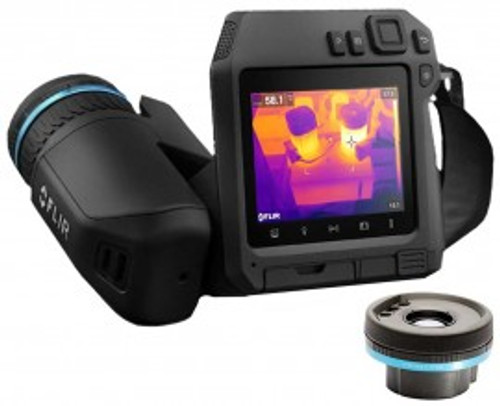

FLIR T530-24-42 Professional Thermal Imaging Camera with 24° and 42° lenses, 320 x 240

Designed to support advanced thermographers and IR service consultants, this thermal imaging camera focuses on resolution, speed and can be depended on when equipment is obstructed from view or difficult to access.

Comfort, Efficiency, and Outstanding Performance

With the 180° rotating optical block, vibrant LCD display, and streamlined form factor, it offers inspectors the necessary tools to support comprehensive inspections in challenging conditions, especially when equipment is obstructed from view or difficult to access.

Maximize Efficiency, Safety, and Performance

Assess equipment and prevent component failure – safely and comfortably – from any vantage point

• Reduce the strain of full-day inspections with 180° rotating optical block for imaging targets overhead or below
• Scan large areas from a safe distance with 320 x 240 resolution, delivering 76,800 non-contact temperature measurement points
• Share lenses (wide angle to telephoto) across your fleet of cameras thanks to AutoCal™ optics
• Ensure crisp thermal imagery and spot-on temperature readings every time with laser assisted autofocus

Make Critical Decisions Quickly

Advanced imaging technology and superior sensitivity help you make the right call – fast

• Get industry-leading image clarity from FLIR Vision Processing™, through the power of MSX®, UltraMax®, and proprietary adaptive filtering
• Determine accessibility of components for repair at the touch of a button by activating on-screen laser distance measurement
• See problems and make decisions easily thanks to scratch-resistant 4" LCD display that's 33% brighter and 4x the resolution of comparable cameras

Designed to Make Your Work Easier

Get most out of your workday with rapid reporting features that help you organize findings in the field

• Quickly access menus, folders, and settings using intuitive controls, including rapid response touchscreen and two programmable buttons
• Allow customers to observe critical findings in real time through Wi-Fi streaming to the FLIR Tools app
• Optimize workflows with streamlined reporting features, such as built-in voice annotation, text comments with auto-fill, and image sketch
• Prepare precise documentation with embedded GPS locations, as well as measurement data from METERLiNK®-enabled FLIR clamps and multimeters

Features

• 180° rotating optical block and vivid 4" capacitive touch screen
• 320 x 240 pixel native resolution (76,800 points of measurement)
• Fast and precise laser-assisted autofocus
• Laser distance and on-screen area measurement
• Customizable work folders
• Intelligent, interchangeable AutoCal™ lenses
• Industry-leading FLIR 2-5-10 warranty

Applications

• IR service consultants
• Power generation
• Electrical distribution
• Manufacturing
• Mechanical inspections

FLIR T530-24-42 Specifications

How to Choose the Right Lens for Your T5xx & Exx Series Thermal Imaging Cameras

Expert advice from a Level 3 Thermographer

Today’s customers get to choose between 14, 24 or 42 degree lenses, but the question is… what to choose? We can help!

Here you’ll find a gathering of various building component or electrical component images that I have taken as well as my guidelines for each type of inspection.

The 24? lens is an excellent in-between option, however I feel the 42? lens will be the better choice for most applications

Residential Building Inspections

If your main focus is residential building inspections your best bet would be the 42? lens. Given that you can see wider at a shorter distance and typically you don’t require the longer distance.

Commercial Building Inspections

Image Taken with 42° Lens

In these applications the distance is longer and it’s important to take this into consideration. Ideally if you’re prepared to invest in more than one lens, my recommendation would be the 42? and 14? lenses. Since you will need to carry out both short distance audits and long distance audits. If you’re only interested in buying one lens, then the 24? lens is the best choice.

For Electrical Contractors

If your main focus is the inside of homes and buildings the 24? or 42? are both great choices. Generally indoor measurements are taken up close and the benefit of a great distance is not necessary. If your measurements are almost always outside the best lens for you is the 14? or 24?. These options give you more distance allowing you to measure electrical components from a longer distance.

If your are working with IR windows on your electrical cabinet 42? lens would be your go to. Given that you need to be up close and personal with the windows so the shorter distance lens is the way you want to go.

For Mechanical Inspectors

When inspecting motors as mechanics you need to be up close however you require a wide scope as well to get all the aspects of the motor. The 42? lens is ideal for inspecting motors especially when working on installations specifically between the walls and equipment as well as you’re working in a very narrow space. Do you ever work with steam traps? If yes, you should consider adding the 14? lens. This is the ideal lens if you have steam traps located near the sealing and want to inspect them from a distance, in order to get all the data you need.

For Electronic Board Inspections

Working with small objects can be tricky with thermal imagers. The T5xx cameras offer the Macro mode as an option to the 24° lens which allows the user to have the added benefit of a macro lens with a standard lens, making it a lot easier to see the fine details of small objects

For Computer Room Mappings

Image Taken with 42° Lens

Give the often short distances available to get the full span of shelves in computer rooms the 42? lens is the best choice, as you can see a 19” shelf at a short distance.

For Process Monitoring

In manufacturing facilities the 42? lens is the go to lens because it’s often difficult to get the chance to take a couple of steps back and get a good image.

A final note, doubling the resolution is ideal for any application, by using the E95 or T540 over the E75 or T530 you get almost equivalent pixel resolution using a 42? lens over the 24? lens. Example at a 5 meter distance the IFOV (size of one pixel) will be 6.60 mm (E75-24) & 7.81mm (E95-42). It is almost like having 2 lenses in one.
