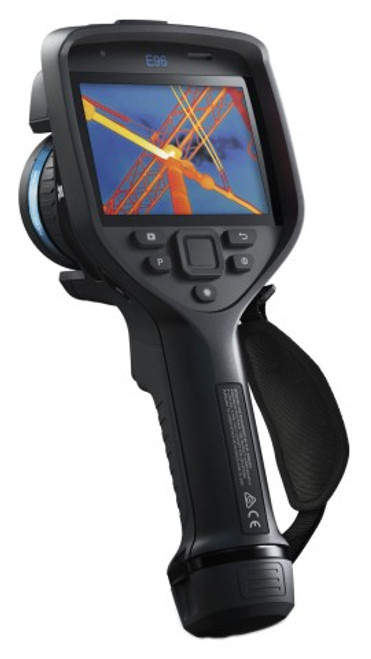

FLIR 90207-0101, E96 Advanced Thermal Camera w/MSX 640 x 480 Resolution/30Hz w/42? and 14? Lens
Write a Review
FLIR
FLIR 90207-0101, E96 Advanced Thermal Camera w/MSX 640 x 480 Resolution/30Hz w/42? and 14? Lens
- Brand
- FLIR
- SKU:
- 90207-0101
- UPC:
- 8.45E+11
- Availability:
- In Stock
- Model No:
- FLIR E96-42-14
FLIR 90207-0101 Offers
Innovative pistol-grip camera with 640 x 480 thermal resolution so inspectors can survey high-voltage, hazardous targets safely and quickly diagnose electrical and mechanical failures. Interchangeable AutoCal lenses offer complete coverage of near and distant targets, with the laser distance meter ensuring the crisp focus needed for accurate temperature measurement. The onboard Inspection Route feature runs pre-planned survey routes to help inspectors stay organized when surveying large or
Outstanding
The 640 x 480 thermal resolution plus UltraMax and MSX image enhancement ensure the camera produces the most vibrant, easiest-to-interpret images
Intelligent
Interchangeable, auto-calibrating lenses - from telephoto to wide-angle - allow users to target electrical hot spots safely, check for mechanical faults, and survey roofs or building
Streamlined reporting
Onboard integration with routing software, a built-in mic for voice annotation, and report generation features all help the camera streamline
Applications
Electrical/power generation inspection
Perform thorough surveys, prevent equipment failures, and maintain safety with routine inspections using a 640 x 480 handheld thermal imaging camera. The higher resolution detector allows inspectors to stand at a safe distance when surveying potentially
Faster inspections
Pre-planned routes can improve survey efficiencies, helping users inspect dozens of electrical and mechanical targets in a logical manner and maintain organized inspection data and reports. The camera makes this possible through the built-in Inspection
Inspection Route runs a pre-defined list of targets that are organized for maximum efficiency. This list is first created in Thermal Studio Pro (sold separately) using the FLIR Route Creator plugin and then downloaded
By ensuring that nothing is missed and that all inspection results are organized from the start, this suite of inspection software speeds up surveys, improves organization, and
Compare the New Exx-Series Models
| ENTRY | GOOD | BETTER | BEST |
| FLIR E54 | FLIR E76 | FLIR E86 | FLIR E96 |
| 320 × 240 Fixed-Lens Thermal Camera | 320 × 240 Thermal Camera with AutoCal Lenses | 464 × 348 Thermal Camera with AutoCal Lenses | 640 × 480 Thermal Camera with AutoCal Lenses |
| - - | - - | - - | - - |
FLIR 90207-0101 Specifications
| IR Resolution | 640 x 480 pixels |
| Resolution with UltraMax Enhancement | 1.2 megapixels |
| MSX Image Enhancement | Yes: details from visual camera add depth and perspective |
| Built-in Visual Camera | 5 MP, fixed focus, with built-in LED light |
| Thermal Sensitivity | <30 mK at 86°F (30°C) |
| Temperature Range | -4 to 248°F (-20 to 120°C) 32 to 1202°F (0 to 650°C) 572 to 2732°F (300 to 1500°C) |
| Accuracy | ±3.6°F (±2°C) or ±2% of the reading |
| Focus Modes | Continuous LDM, one-shot LDM, one-shot contrast, manual |
| Digital Zoom | 1 to 8x continuous |
| Measurement Tools | 3 spot meters in live mode, 3 area meters in live mode |
| Measurement Presets | None, center spot, hot spot, cold spot, User Presets 1 and 2 |
| Lenses | 14 and 42° |
| Lens Identification | Automatic (FLIR AutoCal) |
| On-Camera Routing Software | FLIR Inspection Route enabled |
| On-Camera Report Building | Voice annotation and GPS tagging to images and video; on-screen text; sketch on infrared images from touchscreen |
| FLIR Software Integration | FLIR Thermal Studio Starter, FLIR Thermal Studio (optional), FLIR Thermal Studio Pro (optional), FLIR Research Studio (optional) |
| Communication Modes | USB 2.0, Bluetooth, Wi-Fi, DisplayPort |
| Display | 640 x 480 pixels (VGA) |
| Drop Testing | 6.6' (2 m) |
| Battery Operation Time | >2.5 hours, typical use |
| Dimensions | 11 x 4.6 x 4.4" (279.4 x 116.84 x 111.76 mm) |
| Weight | 2.2 lbs (0.99 kg) |
What's included with the FLIR 90207-0101
- Thermal Camera
- 14° Lens
- 42° Lens
- SD Card (8 GB)?
- USB 2.0 A to USB Type-C Cable,? 1 M
- USB Type-C to HDMI Adapter,? Standard Specification UH311
- USB Type-C to USB Type-C Cable (USB 2.0 Standard)?,? 1 M
- Screws
- Accessory Box II
- Accessory Box III
- Torx T10 Wrench
- Carabiner Hook
- Front Protection
- Front Protection Fastener
- Lanyard Strap,? Camera
- Lens Cap Strap
- Wrist Strap
- Lens Cap,? Front
- Hand Strap
- Hand Strap Bracket, Left and Right
- Hard Carrying Case
- Power Supply for Battery Charger
- Power Supply,? 15 W/3 A
- Battery Charger
- 2 x Battery
- Printed Documentation
- FLIR Thermal Studio Starter
