FLIR CM46 FLIR 400A AC/DC Digital TRMS Clamp Meter with Type K
$272.99
- Brand
- FLIR
- SKU:
- CM46
- UPC:
- 7.94E+11
- Availability:
- In Stock
- Model No:
- CM46

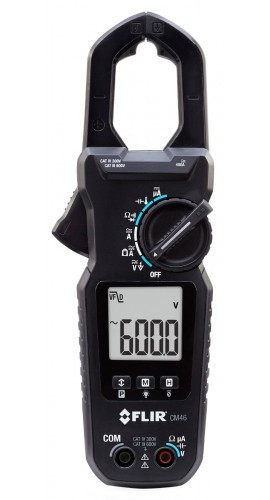

FLIR CM46 True RMS AC/DC Clamp Meter with Accu-Tip and Temperature
The FLIR CM46 offers MAX/MIN/AVG recording, frequency measurement, and electrical field detection to help you determine voltage presence and relative strength of the field. Made with an over-molded, easy-to-grip design, the CM46 Clamp Meter is durable enough to withstand a one meter drop, and the slim form factor is convenient to carry in your toolbag anywhere you go.
Precise, accurate measurements
High accuracy and resolution in small panels
- Accu-Tip enables more accurate amperage measurements on smaller-gauged wires
- MAX/MIN/AVG recording, and frequency and diode measurement
- Data hold, zero function, and low pass filter for voltage measurement
Engineering you can have confidence in
Built rugged to last you for years to come
- Durable to withstand a 1 meter drop, and operates at -10 to 50°C (14 to 122°F)
- Large, bright backlit display makes readings easy to see
- Tough, over-molded, easy-to-grip design and slim, portable size
Professional performance at an affordable price
Provides all the critical features you need
- Built to accept up to a 30mm max conductor
- Electrical field detection determines if voltage is present and the relative strength of the field for safety
- True RMS professional clamp meters
FLIR CM46 Specifications
DC Voltage Range | 600 V |
DC Voltage Accuracy | ±1.0% |
AC Voltage Range (Digital Low Pass Filter) | 600 V |
AC Voltage Accuracy | ±1.0% |
AC + DC Voltage Range (Digital Low Pass Filter) | 600 V |
AC + DC Voltage Accuracy | ±1.2% |
Clamp-On AC Current Range | 400 A |
Clamp-On AC Current Accuracy | ±1.8% to ±2.0% |
Accu-Tip Clamp-On AC Current Range | 60 A |
Accu-Tip Clamp-On AC Current Accuracy | ±1.5% |
Clamp-On DC Current Range | 400 A |
Clamp-On DC Current Accuracy | ±2.0% |
Accu-Tip Clamp-On DC Current Range | 60 A |
Accu-Tip Clamp-On DC Current Accuracy | ±2.0% |
Temperature Range | -40 to 400°C (-40 to 752°F) |
Temperature Accuracy | ±1.0% |
Certifications / Categories | UL, CE / CAT IV: 300V, CAT III 600V |
Jaw Opening | 30 mm Max |
FLIR CM46 Includes:
- FLIR CM46 True RMS AC/DC Clamp Meter with Accu-Tip and Temperature
