FLIR CM57-NIST FLIR Flexible Clamp Meter with LCD and Bluetooth, 18 in with NIST
(No reviews yet)
Write a Review
Write a Review
FLIR
FLIR CM57-NIST FLIR Flexible Clamp Meter with LCD and Bluetooth, 18 in with NIST
$439.99
- Brand
- FLIR
- SKU:
- CM57-NIST
- UPC:
- 7.94E+11
- Availability:
- In Stock
- Model No:
- CM57-NIST

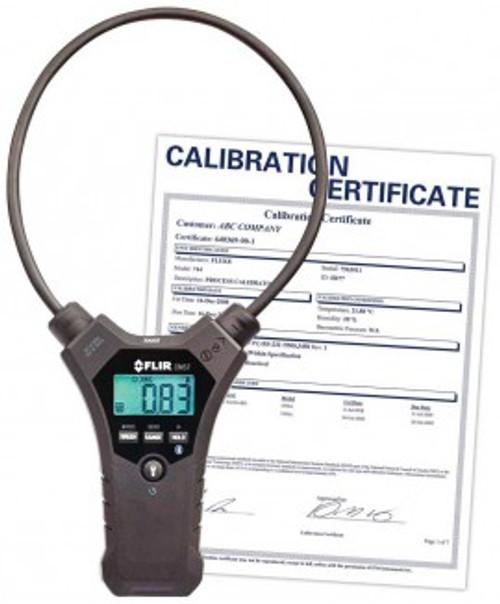

FLIR CM57 Flexible Clamp Meter with LCD and Bluetooth, 3000A, 18", includes Traceable Certificate
This product includes a Traceable Certificate with full Data and Uncertainties.
Made with narrow flexible coil clamp, the CM57 lets you easily take measurements in tight or awkward spots. It features a bright, dual LED worklight that provides built-in illumination for dark cabinets and is drop tested to 3 meters, is portable, lightweight and tangle-free without compromising measurement range.
Features
- Take accurate measurements in tight or awkward spots
- Snake the coil around obstacles with ease, even in deep, crowded cabinets
- TRMS AC Current up to 3000 Amps for multiple conductor measurements
- Inrush current function for equipment start-up spikes
- Easy inspection and navigation
- Standalone flexible clamp meter displays the readings you need
- Bright, dual LED worklights provide built-in illuminations for dark cabinets
- Drop tested to 3 meters, portable, lightweight, and tangle-free without compromising measurement range
- Remote viewing form a safe distance
- Transfer and view data on mobile devices with FLIR Tools Mobile App
- Connect to iOS and Android smartphones or tablets
- Multiple units wirelessly connect for remote viewing of multiphase systems
- Data recording for trend analysis transferable via Bluetooth
Applications
- Electrical Cabinets/Panels
- Plant Maintenance
- Tight Spots
FLIR CM57 Specifications
| Flexible Clamp Meter | |
|---|---|
| Maximum AC Current | 3000A |
| AC Response | TRMS |
| Basic AC current accuracy (of reading) | ±3.0% + 5 Digits |
| Maximum Resolution | 0.01A |
| AC Current Bandwidth | 45Hz - 500Hz (sine wave) |
| Inrush Current | Min 0.5A, 100ms |
| Data Record Mode | 20,000 points, 1 min sample rate |
| Meter Data | |
| Display | 3000 count LCD with backlight and multi-function indicators |
| Max Conductor Diameter | 4.7" (12cm) |
| Flex Coil Length | 18" (45cm) |
| Worklight | Two White LEDs |
| Bluetooth Range Max | 32' (10m) |
| Wireless ID# Max | Up to 20 |
| Agency Approvals | FCC Class B, CE, UL |
| Safety Rating | CAT IV 600V, CAT III 1000V |
FLIR CM57 Includes:
- FLIR CM57 Flexible Clamp Meter with LCD and Bluetooth
- Traceable Certificate with full Data and Uncertainties
