Fowler 54-197-320-0 Labconcept Premium 21"/550mm
(No reviews yet)
Write a Review
Write a Review
Fowler High Precision
Fowler 54-197-320-0 Labconcept Premium 21"/550mm
$84,420.08
- Brand
- Fowler High Precision
- SKU:
- 54-197-320-0
- Availability:
- In Stock
Description

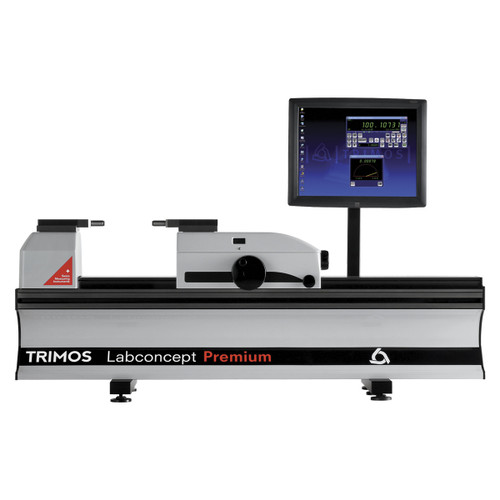

The Fowler/Trimos LABCONCEPT Premium Universal Length Measurement System combines the ultimate in accuracy, performance, range and simplicity in an easy to use, robust instrument.It can calibrate all types of standards including plug gages, ring gages, thread plug gages, thread ring gages, snap gages, depth gages, dial indicators and more.
A large variety of accessory supports and probes allow unmatched versatility in checking both internal and external dimensions.
Measuring range 020"(500mm)
Accuracy: 0.15µm+(L(mm)/2000)µm **Environment must be 20°C +/-0.2°, and 50% RH**
Repeatability (±2S): .000002"/.05µm
Display: Computer added screen display: PC w/flat screen monitor, DDE server and Trimos WIN DHI software for display of functions and measuring results.
Developed for ISO 9000/2000 standards
Switchable Resolution; .0001", .00001", .000001", or .001mm, .0001", .00001mm
Wide range of easily interchangeable accessories
Adjustable measuring force 012N
Displacement speed of measuring carriage = 60"/sec(1.5m/sec)
Fine adjustment range = .394"/10mm
Operational temperature limit 10?-40?C
Operational humidity limit 30 - 80%
*Image shown for representational purposes only
Specifications
The Fowler/Trimos LABCONCEPT Premium Universal Length Measurement System combines the ultimate in accuracy, performance, range and simplicity in an easy to use, robust instrument.It can calibrate all types of standards including plug gages, ring gages, thread plug gages, thread ring gages, snap gages, depth gages, dial indicators and more.
A large variety of accessory supports and probes allow unmatched versatility in checking both internal and external dimensions.
Measuring range 020"(500mm)
Accuracy: 0.15µm+(L(mm)/2000)µm **Environment must be 20°C +/-0.2°, and 50% RH**
Repeatability (±2S): .000002"/.05µm
Display: Computer added screen display: PC w/flat screen monitor, DDE server and Trimos WIN DHI software for display of functions and measuring results.
Developed for ISO 9000/2000 standards
Switchable Resolution; .0001", .00001", .000001", or .001mm, .0001", .00001mm
Wide range of easily interchangeable accessories
Adjustable measuring force 012N
Displacement speed of measuring carriage = 60"/sec(1.5m/sec)
Fine adjustment range = .394"/10mm
Operational temperature limit 10?-40?C
Operational humidity limit 30 - 80%
*Image shown for representational purposes only
