Fowler 54-551-013-0 MICROGAGE 6.15 - 10.35MM
(No reviews yet)
Write a Review
Write a Review
Fowler High Precision

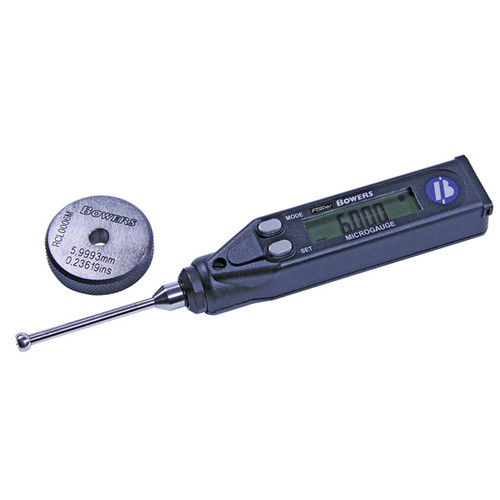

Fowler 54-551-013-0 MICROGAGE 6.15 - 10.35MM
$3,416.90
- Brand
- Fowler High Precision
- SKU:
- 54-551-013-0
Description
The MicroGage 2-point bore gaging system has been designed specifically for the measurement of small bores between 1.0-10.0mm. Featuring a completely new digital readout and extremely compact overall dimensions, the MicroGage is truly a pocket-sized instrument.Digital readout and measuring head together are about the same size and format as a ballpoint pen which represents a big advantage for those needing to measure small precision parts and who need to have their gage with them all the time. The clear LCD display is easily set using only two buttons and results are shown with switchable 0.01/0.001/0.0005mm resolution.
Data transfer is via Proximity-RS232 or Proximity-USB output. The measuring heads are equipped with spherical hard-chromed contact points and are set in appropriate setting rings. Like all Fowler Bowers bore gaging products the MicroGage system is available as individual instruments or as full sets. All setting rings are supplied as standard with UKAS certification.
Features:
Measuring range: 1 - 10mm
New slimline digital display
Switchable resolution 0.01/0.001/0.0005mm
Simple 2-button operation
Clear LCD display
Data output: RS232 / USB proximity sensor
Linearity: Diameter 1.0-1.5 max 2% of measuring travel, min 0.001mm. Diameter 1.5-10 max 1% of measuring travel, min 0.001mm
Repeatability: 0.001mm
Available as individual instruments or sets
UKAS-certificates as standard with all setting rings
Hard-chromed ball-contacts
Depth-stops available
Stand available as an option
*Image shown for representational purposes only
Specifications
The MicroGage 2-point bore gaging system has been designed specifically for the measurement of small bores between 1.0-10.0mm. Featuring a completely new digital readout and extremely compact overall dimensions, the MicroGage is truly a pocket-sized instrument.Digital readout and measuring head together are about the same size and format as a ballpoint pen which represents a big advantage for those needing to measure small precision parts and who need to have their gage with them all the time. The clear LCD display is easily set using only two buttons and results are shown with switchable 0.01/0.001/0.0005mm resolution.
Data transfer is via Proximity-RS232 or Proximity-USB output. The measuring heads are equipped with spherical hard-chromed contact points and are set in appropriate setting rings. Like all Fowler Bowers bore gaging products the MicroGage system is available as individual instruments or as full sets. All setting rings are supplied as standard with UKAS certification.
Features:
Measuring range: 1 - 10mm
New slimline digital display
Switchable resolution 0.01/0.001/0.0005mm
Simple 2-button operation
Clear LCD display
Data output: RS232 / USB proximity sensor
Linearity: Diameter 1.0-1.5 max 2% of measuring travel, min 0.001mm. Diameter 1.5-10 max 1% of measuring travel, min 0.001mm
Repeatability: 0.001mm
Available as individual instruments or sets
UKAS-certificates as standard with all setting rings
Hard-chromed ball-contacts
Depth-stops available
Stand available as an option
*Image shown for representational purposes only
