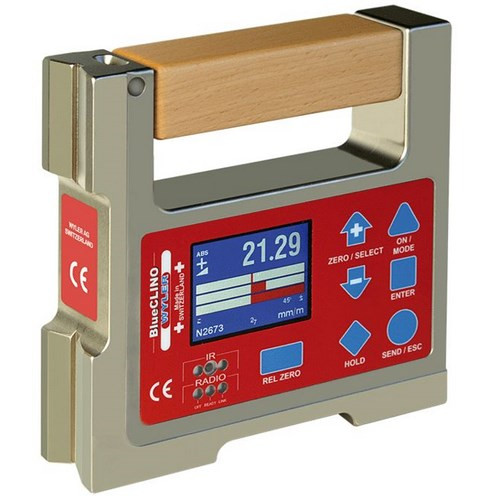

Fowler 54-825-350-0 BLUE CLINO CAST IRON

(No reviews yet) Write a Review

$3,927.60

Current Stock:

Description

Features

Large and very well readable color display
High Precision over the whole measuring range of ±60° with integrated temperature compensation
Resolution: 5 arc sec/0.025mm/m
The internal software, together with a reversal measurement allows, a simple zero setting
The instrument can be recalibrated with the help of optional calibration tools. This process is supported by the internal software
Rugged housing, rust protected, with prismatic bases made out of either aluminum hard anodized or cast iron
Built-in cross vial for easy alignment of the vertical axis in order to avoid ?twist errors?
The instrument is compatible with the whole range of digital sensors of WYLER
Powered with common 1.5V Batteries, rechargeable batteries or with mains adapter
Fulfils the strict CE requirements (immunity against electromagnetic smog)
The instrument can be adjusted to the local gravitation

Measuring range	± 60 degrees STANDARD
Settling time	<5 sec. Value available after setting
Resolution	Depends on units set / 5 Arcsec (approx. 0.025 mm/m)
Limits of error within 6 months / Gain (TA = 20ºC)	<12 Arcsec + 0.027 % R.O. (R.O. = Read-out)
Limits of error at - 45°, 0°, + 45°	± 45°, but <30 Arcsec
Data connection	RS232 / RS485, asynchr., 7 DataBits, 2 StopBits, no parity, 9600 bps
Wireless option	Bluetooth® ISM Band / 2,4000 ? 2,4835 GHz
Power supply	2 x size C, total Voltage 3 V
External power supply	+24 V DC
Temperature range	0 °C to + 40 °C
CE conformity	Fulfills emission and immunity requirements
