Fowler 54-902-614-3 Jaws for 2-Jaw Chuck 6-12mm T1=3mm

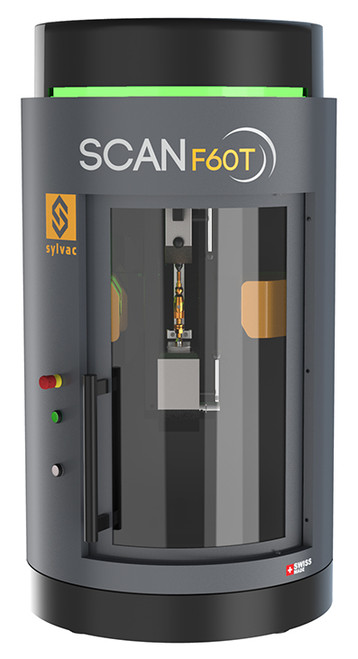

Fowler High PrecisionFAST AND PRECISE OPTICAL DIMENSIONAL MEASUREMENT FOR ALL CYLINDRICAL PARTS Discover our new range of Fowler-Sylvac SCAN machines with over 150 measuring features to control the most demanding dimensions and geometrical tolerances. Our range of Fowler-Sylvac’s machines are designed to measure round parts with diameters from 0.25 mm up to 50 mm (80 mm on request) and up to 500 mm long. Most of the cylindrical parts, such as aerospace and automotive shafts and components, connectors, dental screws and implants, hydraulics parts, metal packaging for food and cosmetics, rollers, turbines parts, CNC turned parts, etc. can be measured in a few seconds. Various thread types and features can be measured and analyzed with our machines. MEASURING PRINCIPLE All SYLVAC-SCAN incorporate high resolution CCD sensors that combine 2 x 7’000 elements linear arrays, with a patented 7.5° system, which would correspond to a camera with a resolution of 200 megapixels! As the part profile is projected, these sensors, which are capable of detecting the slightest changes at pixel level, act as a light sensitive rule. The contour of the workpiece is reproduced in shadow image on the software and all the various elements shown can be measured in static (without part rotation) or in dynamic (with part rotation) when geometrical features such as run-out or concentricity must be measured. Includes: • Instrument according to technical specifications • 2 male centers • Computer • Mouse • Keyboard • Windows multilingual operating system • Screen • Manual • Sylvac Reflex-Scan Software
