Fowler-Bowers 7.875 - 8.27"/200 - 210mm Ultima Bore Gaging System Individual Head 54-565-233-0

Description

Featuring Bowers' historic quality and high-accuracy the Ultima Bore Gaging System is the next generation of Bower's famous Super-Bore line of bore gages and accessories.

Special features:

• Greater accuracy

• Utilizes Bowers' "FASTFIT" measuring heads

• Setting rings manufactured to DIN Standard 2250 part 2.

• Extended head ranges (above 14mm) for greater flexibility and cost-effective measurement.

• All 2-6mm sets supplied as standard with depth-stop.

Features:

• Measuring range:.078"-12.3"/2-310mm

• Resolution: .00001"/.0001mm

• Constant spring pressure ensures top repeatability.

• Positive feel when heads self-centre in the bore.

• Fastfit measuring heads for rapid replacement.

• UKAS certificates standard for all measuring heads.

• UKAS certificates standard for all setting rings.

• Ceramic anvils on heads above .472"/12mm

• Blind-bore measurement standard above .472"/12mm

• Possible to connect several probe holders to one single readout to measure different bore sizes at one measuring station.

• The complete range of Bowers special heads are available for the Ultima (grooves, threads, splines, deep-bores etc.).

• Depth stops available for all heads

• Extensions available for deep bore measurement

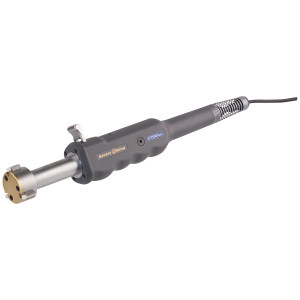

*Image shown for representational purposes only
