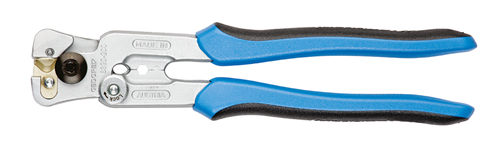

Gedore 2788799 Wire rope cutter 200 mm 8320-200 JC

Description

• Easy-to-change cutting plates
• Cutting plates of powder metallurgical high-speed steel (HSS). Manufactured in the MIM process (Metal Injection Molding)
• Extremely high durability compared to traditional wire rope cutters
• Extremely soft shearing cut reliably prevents the wire rope from fanning out
• Tip: Can be operated with one hand of an average size up to a 5 mm Ø. Therefore optimally suited as shears in an emergency at sea.
• Tip: Can be operated with one hand of an average size up to a 5 mm Ø. Therefore optimally suited as shears in an emergency at sea.
• Specially arched cutting edges
• Easy to replace cutting plates if worn
• Hardness 62 - 65 HRC
• Low force needed due to the optimum cutting-edge geometry
• Low effort required due to optimum cutting geometry
• 2 integrated press profiles for Bowden cable end caps and Bowden cable sheath end caps
• Cutting performance:
• Wire ropes up to 1800 N / mm² with max. Ø 6 mm (e.g. stainless steel wire ropes, wire ropes with steel and textile ropes, Bowden cables, shrouds)
• Wire up to 750 N/mm² with max. 4 mm Ø (e.g. nails/wire pins, screws, bolts, ceiling hangers)
• Single and multicore copper and aluminium cables with max. 10 mm Ø
• Joint:
• Adjustable joint for precise cutting plate guidance
• Latch to prevent unwanted opening
• thighs/handles:
• Version JC = with 2-component handles
• Material/Finish:
• Plier body hot drop-forged
• Chrome-plated
