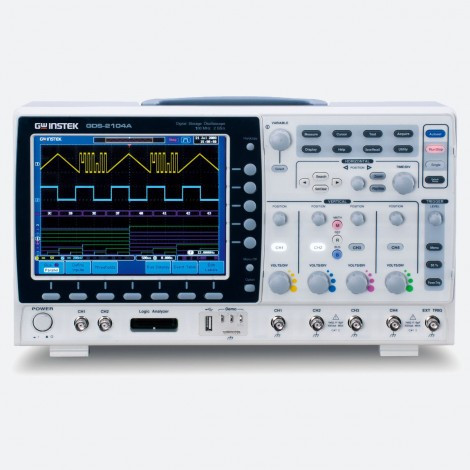

Gw Instek GDS-2104A 100MHz, 2GS/s, 4 Ch. with RS-232, USB, VPO Digital Oscilloscope.

Product Features:

• 100 MHz Bandwidth
• 4 Input Channels
• 2 GSa/s Maximum Real-Time Sampling Rate and 100 GSa/s Equivalent Time Sampling Rate
• 2M points Maximum Record length
• 8 bits@1M : 1mV~10V Vertical Resolution
• 1ns/div ~ 100s/div (1-2-5 increments); ROLL: 100ms/div ~ 100s/div Time Base Range
• 80,000 Waveforms per Second (Max) Waveform Update Rate
• 8 in. TFT LCD SVGA Color Display (LED Back-light)
• 800 horizontal x 600 vertical pixels (SVGA) Display Resolution
• Visual Persistence Oscilloscope (VPO) Technology to Display Less-Frequently-Occurred Signals
• Fast Update Rate of 80,000 Waveform Per Second
• Segmented Memory Acquisition and Waveform Search Function
• 36 Automatic Measurement Functions
• Standard Model Provides I2C, UART, SPI Serial Bus Trigger and Analysis Functionality
• Optional 5MHz and 25MHz Function Generator (Not Included)
• Flexible Remote Control Connectivity (Standard: USB; Optional: LAN/GPIB (Not Included))
• Upgradable CAN/LIN Bus, DVM, H-Expansion, Data Log and Advanced Logic Functionality (Upgrade Not Included)

Applications

• Industrial and Educational R&D Labs
• Product Testing and Quality Assurance
• Embedded System and Mix Signal Design
• System Integration and Debugging
• Maintenance and Repair Service
