Hioki BT3563-01 Battery Tester

Description

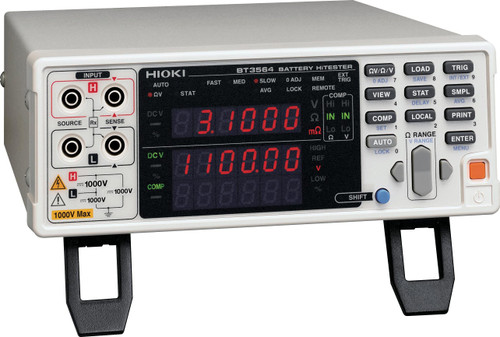

The Hioki BT3563-01 benchtop battery tester supports simultaneous high-speed measurement of internal resistance and battery voltage for the ever-expanding production lines of increasingly larger lithium-ion low resistance batteries, and other battery packs for high voltage applications. The BT356301 battery internal resistance tester can measure the voltage and resistance of battery modules, high voltage battery packs, fuel cell stacks and other large batteries up to 300V.

High Precision - High Resolution - Quick Response

High Precision

• Resistance: +/- 0.5% rdg. +/- 5 dgt.
• Voltage: +/- 0.01% rdg. +/- 3 dgt.

High Resolution

• Resistance: 0.01 uΩ (300 mΩ range)
• Voltage: 10 uV (6 V range)

Quick Response

• Resistance and Voltage: Simulaneous measurement within 18ms

Simultaneous Resistance & Voltage Judgments

Resistance and voltage can be simultaneously judged Hi/IN/Lo by independent comparators. Judgment results are provided on the display, beeper, and external I/O. The display allows confirming both results at a glance.

Composite Judgment Result Output

External I/O provides both separate and combined outputs of resistance and voltage judgment results, so composite results can be monitored.

Analog Output

The BT3563-01 provides analog output of resistance measurement values. This is convenient for combining recorded data from multiple locations or of various data types, such as for logging long-term measurements and for fuel cell evaluation.

• GPIB and Analog Output

• Measure high-voltage battery packs up to 300V

• Production line testing of high-voltage battery packs and battery modules

• Large (low-resistance) cell testing

• Choice of PC interfaces for full remote operation

• Note: The comparison threshold values depend on the battery manufacturer, type, and capacity, and these must be established by the user.
