Hioki IM7580A-2 1 MHz-300MHz Impedance Analyzer w/2m cable|Testequipmentusa

Hioki IM7580A-2 1 MHz-300MHz Impedance Analyzer w/2m cable

(No reviews yet) Write a Review

$14,850.00

Brand

Hioki

SKU:

IM7580A-2

Availability:

In Stock

Description
0 Reviews

Hioki IM7580A-2 1 MHz-300MHz Impedance Analyzer w/2m cable

Hioki IM7580A-02

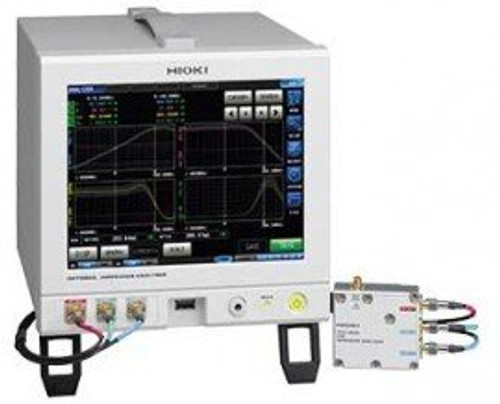

Use this Hioki IM7580A-02 Impedance Analyzer to measure a frequency range of 1 to 300 MHz in your electronic components. The meter's Analyzer, Comparator and Contact Check functions provide versatility, and the included 6.56' (2 m) connection cable helps simplify setup.

Features

Great for R&D applications and high-volume production inspections
Built to measure a frequency range of 1 to 300 MHz with a measurement time of 0.5 ms
Analyzer mode lets you perform frequency sweeps, level sweeps and time interval measurements
Gauge if measured values fall inside a range defined by you by using the Comparator function
Check the contact between a specimen and the measurement terminals to uncover a faulty or verify a good contact
±0.72% reading basic accuracy
Use the 8.4" (21.34 cm) touch screen to view results and more
Comes with a 6.56' (2 m) connection cable for simplified setup

Hioki IM7580A-02 Specifications

Measurable Range	100 mΩ to 5 kΩ
Measurement Modes	LCR, Analyzer, Continuous measurement
Measurement Parameters	Z, Y, θ, Rs (ESR), Rp, X, G, B, Cs, Cp, Ls, Lp, D (tanδ), Q
Measurement Frequency	1 to 300 MHz
Measurement Signal Level	-40 to +7 dBm (power), 4 mV to 1,001 mVrms (voltage), 0.09 mA to 20.02 mArms (current)
Measurement Speed	0.5 ms
Output Impedance	50 Ω
Display	8.4" (21.34 cm) TFT touch screen
Interface	EXT I/O (handler), USB communication, USB memory, LAN
Power Supply	100 to 240 VAC, 50/60 Hz, 70 VA maximum
Functions	Contact check, comparator, BIN measurement (classification), panel loading/saving, memory function, equivalent circuit analysis, correlation compensation
Product Length	10.55" (268 mm) (main unit), 0.94" (24 mm) (test head)
Product Width	8.46" (215 mm) (main unit), 2.4" (61 mm) (test head)
Product Height	7.87" (200 mm) (main unit), 2.17" (55 mm) (test head)
Product Weight	229.3 oz (6.5 kg) (main unit), 6.2 oz (175 g) (test head)
Manufacturer Warranty	3 years
