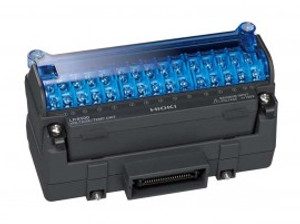

Hioki LR8402-20 30 Channel Data Logger with 15 Channel LR8501 and 15 Channel LR8500 Input Units.

Hioki LR8402-20 Description

Only the size of an A4 sheet of paper, the HIOKI LR8400-20 Series is the realization of our goal to build a logger that provides the existing functionality of a multi-channel data logger in a portable format. The new model comes with 30 channel capability as standard, to which another 30 channels can be added. All input channels for measuring temperature, humidity, voltage and impedance are isolated for safety, culminating in a powerful multi-measurement system that also Description pulse and logic inputs. Long-term logging is coupled with the capability to protect data against unexpected power outages and other problems for stable recordings over an entire year (see note). Note: Continuous recordings lasting longer than 1 year are also possible.

Features

• Compact size despite 30-channel standard capabilities
• Expand up to 30 additional channels

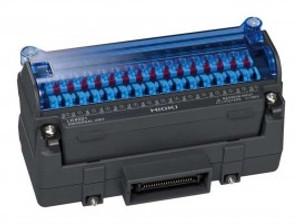

• Built-in units are equivalent to the Universal Unit LR8501 (15 ch) x 2 (Built-in units cannot be removed or changed)
• Protected against unexpected power outages
• Write data to USB memory stick or CF card in real-time
• Built in with USB 2.0 or 100 BASE-TX LAN interface
• 5.7" TFT color display
