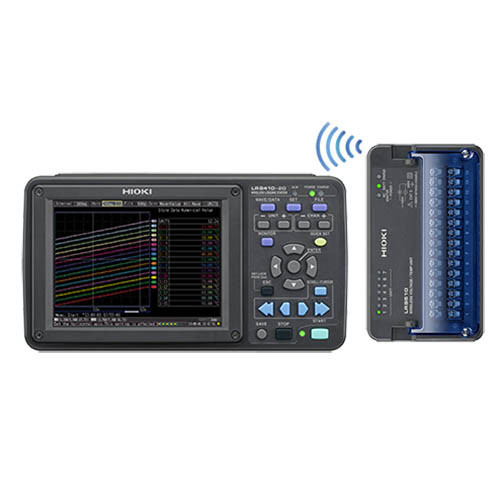

Hioki LR8410-20 PRO Wireless Multi-Channel Data Logger

The Hioki LR8410-20 PRO KIT features the LR8410-20 Multi-Channel Data Logger, which is a high-speed data logger for recording multiple channels of voltage, temperature, resistance or humidity signals. The LR8410-20 provides an innovative wireless logging system capable of capturing up to 105 channels of data wirelessly using Bluetooth wireless technology.

Users can connect up to 7 measurement units (two units included) to perform multipoint measurement across a maximum of 105 channels (when using 15-channel units LR8510 or LR8511). 1- or 2-channel wireless loggers (including LR8520, LR8512, LR8513, LR8514 or LR8515 - all sold separately) can also be paired with the LR8410-20. Mix and match 7 types of measurement units to consolidate the measurements you need. Use Bluetooth wireless technology to send and receive data over line-of-sight distances of up to 30 m.

The LR8410 features Hioki's Quick Set function. Since measurement units can be registered simply by following the Unit Registration Guide, even first-time users can start measurement right away. If no logging modules have been registered, the Quick Set screen is displayed when the LR8410 is turned on, and the instrument automatically detects any logging modules that are within communications range. It's also easy to configure settings when adding measurement units later.
