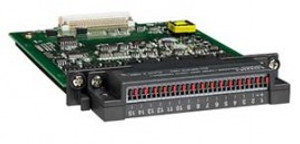

Hioki LR8510 Voltage/Temperature Input Unit 15 Channels

(No reviews yet) Write a Review

$1,924.65

No. of channels: 15 analog channels; isolated scanning method input (2 terminals: M3 screw type)
Voltage: ±10 mV to ±100 V, 1-5 V f.s., Max. resolution: 500 nV Note: Isolated between channels and from each channel to chassis
Temperature: Thermocouples: -200°C to 2000°C (depends on sensor), (K, J, E, T, N, R, S, B, W), Max. resolution 0.01°C
- Note: Isolated between channels and from each channel to chassis
Max. rated voltage between isolated input channels: 300 V DC [Max. allowable input] ± 100V DC
Max. rated voltage from isolated terminals to ground: 300 V AC, DC (max. voltage from terminals to chassis ground without damage)
Digital filter: Select OFF/ 50 Hz/ 60 Hz (During analog input the cut-off frequency is automatically set according to the sampling rate)
