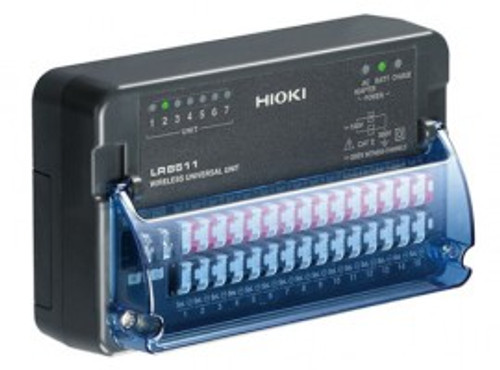

Hioki LR8511 Universal Input Unit 15 Channels

(No reviews yet) Write a Review

$2,440.00

No. of channels: 15 analog channels; isolated scanning method input (4 terminals: push-button type)
Voltage: ±10mV to ±100V, 1-5 V f.s. Max. resolution: 500 nV
- Note: Isolated between channels and from each channel to chassies
Temperature: Thermocouples: -200°C to 2000°C (depends on sensor), (K, J, E, T, N, R, S, B, W), Max. resolution 0.01°C
- Note: Isolated between channels and from each channel to chassies
Temperature: Pt 100, JPt 100 sensor: -200°C to 800°C, Max. resolution 0.01°C
- Note: Not isolated between channels
Resistance: 10 to 200 f.s., Max. resolution 0.5 m
- Note: Not isolated between channels
Humidity: 100 % rh f.s. 5.0 to 95.0 % rh (when using Z2000), resolution 0.1 % rh
- Note: Not isolated between channels
Max. rated voltage between isolated input channels: 300 V DC [Max. allowable input] ± 100V DC
Max. rated voltage from isolated terminals to ground: 300 V AC, DC (max. voltage from terminals to chassis ground without damage)
Digital filter: Select OFF/ 50 Hz/ 60 Hz (During analog input the cut-off frequency is automatically set according to the sampling rate)
