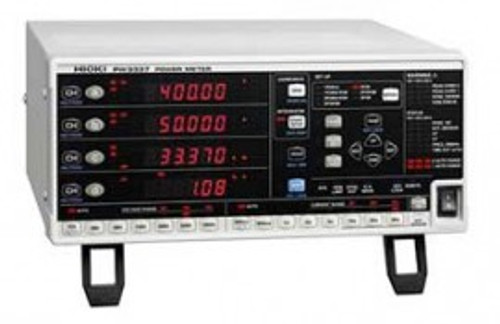

Hioki PW3337-03 Power Analyzer

(No reviews yet) Write a Review

$7,380.45

Brand: Hioki
SKU:: PW3337-03
UPC:

Current Stock:

Quantity:

Adding to cart… The item has been added

Description
0 Reviews

Hioki PW3337-03 Description:

The Hioki PW3337-03 Power Analyzer measures power on the full range of electrical equipment, from single-phase devices such as battery-driven devices and household electronics to industrial use and three-phase electrical equipment over 3 input channels. The power meters provide coverage from DC to inverter frequencies with support for voltages up to 1000 V and direct-input currents of up to 65 A, and can also measure currents of up to 5000 A using an optional current sensor. The PW333703 model comes with a GP-IB input and a D/A output installed.

Key Features:

GP-IB and D/A output installed

Compatible with the SPECpower benchmark for server power consumption

SPECpower is a registered trademark of Standard Performance Evaluation Corporation

Measure DC, and single-phase 2-wire to 3-phase 4-wire with 3-channel input

For development and production of motors, inverters, power conditioners, power supplies, and other devices

High-precision basic accuracy of ±0.1 %

Wide frequency bandwidth of 0.1 Hz to 100 kHz or DC

High-current measurement up to 65 A of direct input

Harmonic measurement up to the 50th order according to IEC 61000-4-7

High-accuracy measurement, even with a low power factor for no-load testing of transformers and motors

Built-in external sensor input terminals to measure up to 5000 A AC

Synchronize up to 8 units for multi-unit measurement

Includes:

1 - User manual
1 - Measurement guide
1 - Power cord
