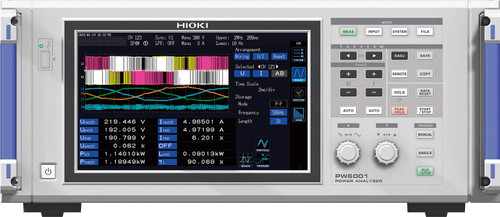

Hioki PW6001-02 Power Analyzer 2 Channel

(No reviews yet) Write a Review

$16,500.00

Brand: Hioki
SKU:: PW6001-02
UPC:
Availability:: Discontinued

Current Stock:

Description
0 Reviews

Hioki PW6001-02 Description:

Hioki PW6001-02 benchtop power analyzers are best in class power measuring instruments for measuring single to three-phase lines with a high degree of precision and accuracy. The PW600102 is a power analyzer that features high accuracy, wide band, and high stability for measuring electrical power from DC to inverter frequencies, providing a maximum of 12 channels when synchronizing two 6-channel models connected via an optical link. Able to support single- and three-phase inverter motor system measurements and next generation devices such as silicon-carbide (SiC) inverters. This model provides 2 channels.

Key Features:

2-Channel model

Basic accuracy of +/-0.02% for power measurement (PW6001 accuracy only. Instrument delivers accuracy of +/-0.07% even after the current sensor accuracy has been added.)

High noise resistance and stability (80 dB/100 kHz CMRR, +/-0.01%/ C temperature characteristics)

Accurate measurement even when the load is characterized by large fluctuations; TrueHD 18-bit resolution

10 ms data refresh while maintaining maximum accuracy (using a specially designed IC to make all measurements independently while performing simultaneous calculations.)

DC basic accuracy of +/-0.07%, which is key for stable, accurate efficiency measurement

Broad frequency band and sampling that are 10 times better than those of legacy models

Synchronize 2 units for up to 12 channels in real time

Models can be connected with an optical connection cable (over a max. length of 500 m) to enable numerical and waveform synchronization.

Special triggers to enable waveform analysis and motor analysis without the need for an oscilloscope

Includes:

1 - User manual
1 - Power cord
