Hioki SP7001 Non-Contact CAN Sensor, Supports CAN FD / CAN Signals
(No reviews yet)
Write a Review
Write a Review
Hioki
Hioki SP7001 Non-Contact CAN Sensor, Supports CAN FD / CAN Signals
$1,212.75
- Brand
- Hioki
- SKU:
- SP7100
- Availability:
- In Stock

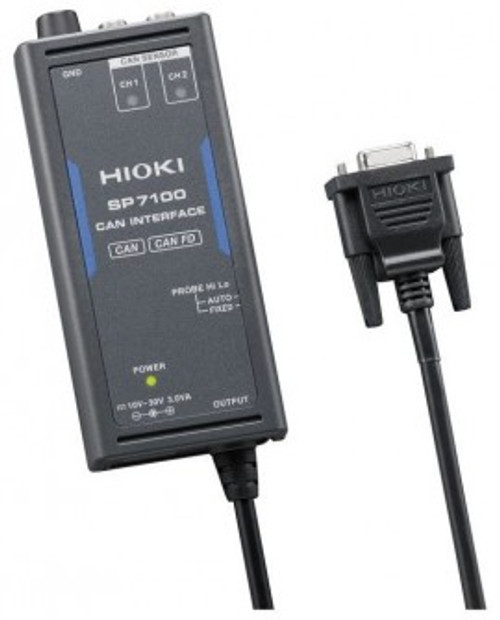

Hioki SP7100 Specifications
| Operating Environment | Indoors, Pollution Degree 2, altitude up to 6562' (2000 m) |
| Operating Temperature and Humidity | Temperature: 40°F to 185°F (40°C to 85°C) Humidity: 40°F to 140°F (40°C to 60°C), 80% RH or less (no condensation) 140°F to 185°F (60°C to 85°C) , 60% RH or less (no condensation) |
| Storage Temperature and Humidity | 40°F to 185°F (40°C to 85°C) , 80% RH or less (no condensation) |
| Standards | Safety: EN 61010 EMC: EN 61326, Class A |
| Vibration Resistance | JIS D 1601:1995 5.3(1) Class 1: Passenger vehicles; conditions: Class A equivalent 4h along X-axis and 2h along Y- and Z-axes at a vibration acceleration of 45 m/s2 (4.6 G) |
| Power Supply | Supplied from SP7100 |
| External Dimensions | Approx.1.73W Ã 3.35H Ã 0.79"D (44W Ã 85H Ã 20D mm) |
| Weight | 6.3 oz (180g) (including cables) |
| Cable Length | Approx. 8.2' (2.5 m) |
