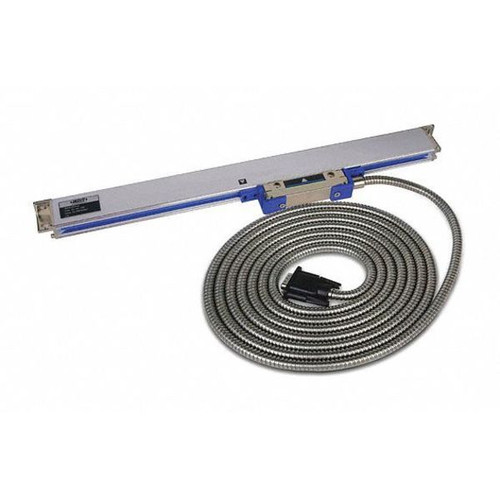

Insize Isl-A5-350 Linear Scale, 14"/350Mm, Resolution .0002"

(No reviews yet) Write a Review

$332.35

Brand: INSIZE
SKU:: ISL-A5-350
UPC:
Availability:: In Stock

Current Stock:

Quantity:

Adding to cart… The item has been added

Description
0 Reviews

Description

Linear DRO Scale, Resolution 0.0002 in, Accuracy +/-267micron in, IP Rating IP54, Data Output Type Cable, Detection Type TTL, Effective Range 14 in/350 mm, Encoder Body Style Standard, Maximum Measurement - Inch 14 in, Maximum Measurement - mm 350 mm, Maximum Operating Temperature - C 70 Degrees C, Maximum Operating Temperature - F 158 Degrees F, Minimum Measurement - Inch 0 in, Minimum Measurement - mm 0 mm, Minimum Operating Temperature - C -10 Degrees C

Insize ISL-A5-350 Specifications

Item: Linear DRO Scale

Type: ISL-A5 Series Linear DRO Scale

Range (In./mm): 14/350

Resolution (In./mm): 0.0002/0.01

Overall Length (In./mm): 10.197/259

Functions: Suitable for Milling Machines, XY Tables, Jigs

Includes: Anti-Dust Cover, L Shape Support, Mounting Accessories, Plain Base

Beam Length (In./mm): 38.000/965

Accuracy (In/mm): +/-(197+5L) microinch

Beam Thickness (In/mm): 2.421/61.5

For Use With: Jigs, Milling Machines, XY Tables

Accuracy: +/-267micron in

Included Signal Cable Length: 140 in

Resolution: 0.0002 in

Detection Type: TTL

Overall Length: 19 7/8 in

Encoder Body Style: Standard

Data Output Type: Cable

Minimum Measurement - mm: 0 mm

Beam Length: 19.87 in

Includes Signal Cable: Yes

Maximum Measurement - Inch: 14 in

Maximum Operating Temperature - F: 158 Degrees F

Operating Temperature Range: -10 Degrees to 70 Degrees C, 14 Degrees to 158 Degrees F

Effective Range: 14 in/350 mm

Beam Thickness: 2.421 in

IP Rating: IP54

Maximum Response Speed: 90m/min

Minimum Operating Temperature - C: -10 Degrees C

Maximum Operating Temperature - C: 70 Degrees C

Minimum Operating Temperature - F: 14 Degrees F

Maximum Measurement - mm: 350 mm

Minimum Measurement - Inch: 0 in

Country of Origin (subject to change): China
