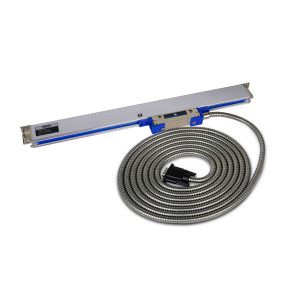

Insize Isl-A5-800 Linear Scale, 32"/800Mm, Resolution .0002"

(No reviews yet) Write a Review

$356.15

Brand: INSIZE
SKU:: ISL-A5-800
UPC:
Availability:: In Stock

Current Stock:

Quantity:

Adding to cart… The item has been added

Description
0 Reviews

Description

Linear DRO Scale, Resolution 0.0002 in, Accuracy +/-357micron in, IP Rating IP54, Data Output Type Cable, Detection Type TTL, Effective Range 32 in/800 mm, Encoder Body Style Standard, Maximum Measurement - Inch 32 in, Maximum Measurement - mm 800 mm, Maximum Operating Temperature - C 70 Degrees C, Maximum Operating Temperature - F 158 Degrees F, Minimum Measurement - Inch 0 in, Minimum Measurement - mm 0 mm, Minimum Operating Temperature - C -10 Degrees C

Insize ISL-A5-800 Specifications

Item: Linear DRO Scale

Type: ISL-A5 Series Linear DRO Scale

Range (In./mm): 32/800

Resolution (In./mm): 0.0002/0.01

Overall Length (In./mm): 10.197/259

Beam Thickness (In/mm): 2.421/61.5

Functions: Suitable for Milling Machines, XY Tables, Jigs

Beam Length (In./mm): 38.000/965

Includes: Anti-Dust Cover, L Shape Support, Mounting Accessories, Plain Base

Accuracy (In/mm): +/-(197+5L) microinch

For Use With: Jigs, Milling Machines, XY Tables

Accuracy: +/-357micron in

Operating Temperature Range: -10 Degrees to 70 Degrees C, 14 Degrees to 158 Degrees F

Included Signal Cable Length: 140 in

Minimum Operating Temperature - F: 14 Degrees F

Maximum Measurement - Inch: 32 in

Maximum Operating Temperature - F: 158 Degrees F

Beam Thickness: 2.421 in

Beam Length: 37.87 in

Maximum Response Speed: 90m/min

Minimum Operating Temperature - C: -10 Degrees C

Includes Signal Cable: Yes

Resolution: 0.0002 in

Encoder Body Style: Standard

Effective Range: 32 in/800 mm

Detection Type: TTL

Maximum Measurement - mm: 800 mm

Data Output Type: Cable

Minimum Measurement - Inch: 0 in

Maximum Operating Temperature - C: 70 Degrees C

IP Rating: IP54

Overall Length: 37 7/8 in

Minimum Measurement - mm: 0 mm

Country of Origin (subject to change): China
