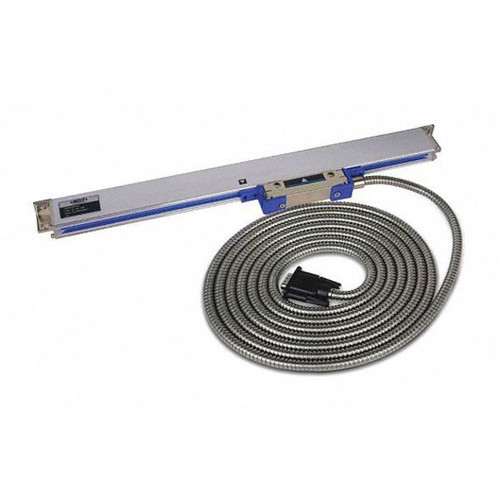

Insize Isl-A1-550 Linear Scale, 22"/550Mm, Resolution .00005"

(No reviews yet) Write a Review

$400.35

Brand: INSIZE
SKU:: ISL-A1-550
UPC:
Availability:: In Stock

Current Stock:

Quantity:

Adding to cart… The item has been added

Description
0 Reviews

Description

Linear DRO Scale, Resolution 0.00005 in, Accuracy +/-307micron in, IP Rating IP54, Data Output Type Cable, Detection Type TTL, Effective Range 22 in/550 mm, Encoder Body Style Standard, Maximum Measurement - Inch 22 in, Maximum Measurement - mm 550 mm, Maximum Operating Temperature - C 70 Degrees C, Maximum Operating Temperature - F 158 Degrees F, Minimum Measurement - Inch 0 in, Minimum Measurement - mm 0 mm, Minimum Operating Temperature - C -10 Degrees C

Insize ISL-A1-550 Specifications

Item: Linear DRO Scale

Type: ISL-A1 Series Linear DRO Scale

Range (In./mm): 22/550

Resolution (In./mm): 0.0001/0.001

Overall Length (In./mm): 10.197/259

Accuracy (In/mm): +/-(197+5L) microinch

Beam Length (In./mm): 38.000/965

Functions: Suitable for Milling Machines, XY Tables, Jigs

Beam Thickness (In/mm): 2.421/61.5

Includes: Anti-Dust Cover, L Shape Support, Mounting Accessories, Plain Base

For Use With: Jigs, Milling Machines, XY Tables

Effective Range: 22 in/550 mm

Maximum Operating Temperature - F: 158 Degrees F

Detection Type: TTL

Minimum Operating Temperature - F: 14 Degrees F

IP Rating: IP54

Maximum Measurement - mm: 550 mm

Minimum Measurement - mm: 0 mm

Minimum Operating Temperature - C: -10 Degrees C

Included Signal Cable Length: 140 in

Operating Temperature Range: -10 Degrees to 70 Degrees C, 14 Degrees to 158 Degrees F

Minimum Measurement - Inch: 0 in

Overall Length: 27 7/8 in

Maximum Operating Temperature - C: 70 Degrees C

Maximum Measurement - Inch: 22 in

Maximum Response Speed: 50m/min

Resolution: 0.00005 in

Beam Thickness: 2.421 in

Encoder Body Style: Standard

Data Output Type: Cable

Includes Signal Cable: Yes

Accuracy: +/-307micron in

Beam Length: 27.87 in

Country of Origin (subject to change): China
