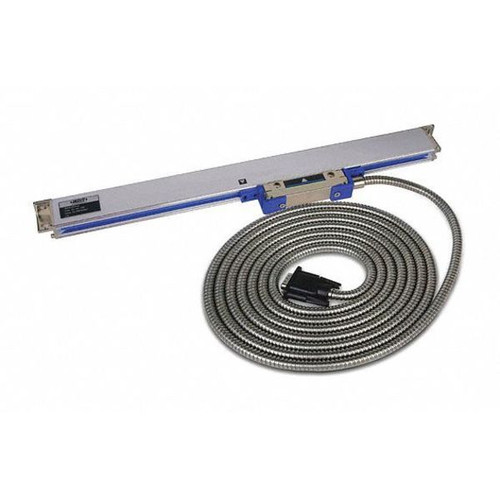

Insize Isl-B5-150 Linear Scale, 6"/150Mm, Resolution .0002"

(No reviews yet) Write a Review

$345.95

Brand: INSIZE
SKU:: ISL-B5-150
UPC:
Availability:: In Stock

Current Stock:

Quantity:

Adding to cart… The item has been added

Description
0 Reviews

Description

Linear DRO Scale, Resolution 0.0002 in, Accuracy +/-(197+5L)micron in, IP Rating IP54, Data Output Type Cable, Detection Type TTL, Effective Range 6 in/150 mm, Encoder Body Style Standard, Maximum Measurement - Inch 6 in, Maximum Measurement - mm 150 mm, Maximum Operating Temperature - C 70 Degrees C, Maximum Operating Temperature - F 158 Degrees F, Minimum Measurement - Inch 0 in, Minimum Measurement - mm 0 mm, Minimum Operating Temperature - C -10 Degrees C

Insize ISL-B5-150 Specifications

Item: Linear DRO Scale

Type: ISL-B5 Series Linear DRO Scale

Range (In./mm): 6/150

Resolution (In./mm): 0.0002/0.01

Overall Length (In./mm): 10.197/259

Functions: Suitable for Milling Machines, XY Tables, Jigs

Beam Thickness (In/mm): 2.630/66.8

Includes: Anti-Dust Cover, L Shape Support, Mounting Accessories, Plain Base

Accuracy (In/mm): +/-(197+5L) microinch

Beam Length (In./mm): 38.000/965

For Use With: Jigs, Milling Machines, XY Tables

Minimum Operating Temperature - C: -10 Degrees C

Accuracy: +/-(197+5L)micron in

Includes Signal Cable: Yes

Overall Length: 12 1/16 in

Beam Length: 12.06 in

Included Signal Cable Length: 140 in

Maximum Operating Temperature - C: 70 Degrees C

Data Output Type: Cable

Minimum Measurement - Inch: 0 in

Maximum Measurement - Inch: 6 in

Operating Temperature Range: -10 Degrees to 70 Degrees C, 14 Degrees to 158 Degrees F

Effective Range: 6 in/150 mm

Maximum Operating Temperature - F: 158 Degrees F

Encoder Body Style: Standard

Maximum Response Speed: 60m/min

Beam Thickness: 2.63 in

Minimum Operating Temperature - F: 14 Degrees F

Maximum Measurement - mm: 150 mm

Resolution: 0.0002 in

Minimum Measurement - mm: 0 mm

IP Rating: IP54

Detection Type: TTL

Country of Origin (subject to change): China
