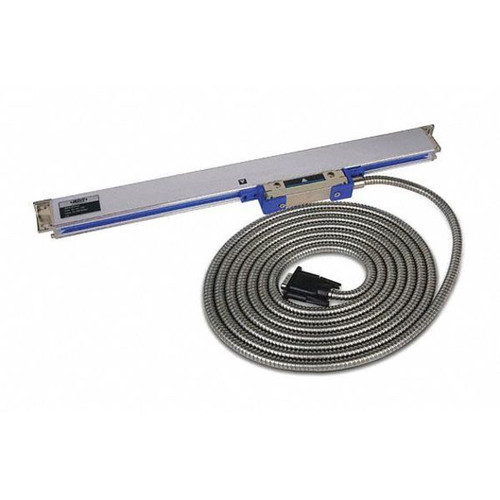

Insize Isl-B5-1800 Linear Scale, 72"/1800Mm, Resolution .0002"

Insize Isl-B5-1800 Linear Scale, 72"/1800Mm, Resolution .0002"

(No reviews yet) Write a Review
$1,207.00
Brand
SKU:
ISL-B5-1800
Availability:
In Stock

Adding to cart… The item has been added
Add to Wish List

Description

Linear DRO Scale, Resolution 0.0002 in, Accuracy +/-(197+5L)micron in, IP Rating IP54, Data Output Type Cable, Detection Type TTL, Effective Range 72 in/1800 mm, Encoder Body Style Standard, Maximum Measurement - Inch 72 in, Maximum Measurement - mm 1,800 mm, Maximum Operating Temperature - C 70 Degrees C, Maximum Operating Temperature - F 158 Degrees F, Minimum Measurement - Inch 0 in, Minimum Measurement - mm 0 mm, Minimum Operating Temperature - C -10 Degrees C

Insize ISL-B5-1800 Specifications

  • Item: Linear DRO Scale
  • Type: ISL-B5 Series Linear DRO Scale
  • Range (In./mm): 10/250
  • Resolution (In./mm): 0.0002/0.01
  • Overall Length (In./mm): 10.197/259
  • Beam Length (In./mm): 38.000/965
  • Includes: Anti-Dust Cover, L Shape Support, Mounting Accessories, Plain Base
  • Functions: Suitable for Milling Machines, XY Tables, Jigs
  • Accuracy (In/mm): +/-(197+5L) microinch
  • Beam Thickness (In/mm): 2.630/66.8
  • For Use With: Jigs, Milling Machines, XY Tables
  • Included Signal Cable Length: 400 in
  • Overall Length: 78 27/32 in
  • Maximum Measurement - mm: 1,800 mm
  • Maximum Measurement - Inch: 72 in
  • IP Rating: IP54
  • Beam Thickness: 2.63 in
  • Maximum Response Speed: 60m/min
  • Minimum Operating Temperature - F: 14 Degrees F
  • Maximum Operating Temperature - C: 70 Degrees C
  • Includes Signal Cable: Yes
  • Accuracy: +/-(197+5L)micron in
  • Detection Type: TTL
  • Data Output Type: Cable
  • Resolution: 0.0002 in
  • Effective Range: 72 in/1800 mm
  • Maximum Operating Temperature - F: 158 Degrees F
  • Operating Temperature Range: -10 Degrees to 70 Degrees C, 14 Degrees to 158 Degrees F
  • Minimum Measurement - Inch: 0 in
  • Beam Length: 78.85 in
  • Encoder Body Style: Standard
  • Minimum Measurement - mm: 0 mm
  • Minimum Operating Temperature - C: -10 Degrees C
  • Country of Origin (subject to change): China
